Pump Catalog Numbering System
IHT泵需要压缩空气驱动即可产生压力。泵可以连接到现场现有的压缩空气管道系统即可，不需要连接电源就可以产生压力。 采用压缩空气驱动的优点：
- 通过手动压力控制阀或气控阀即可调节压力
- 由空气驱动，特别适用于防爆应用领域由空气驱动，特别适用于防爆应用领域
- 能够达到预设定的最终压力
- 自动由泵进行补压
- 长期保压而不消耗能量
- 保压时介质不会产生过热现象
- 便于安装、维护成本低、只需连接气源、入口管线及压力管线即可
- 运行可靠、维护成本低、运行时噪音小
| IM 系列 |
|
IM系列可以提供高达3gpm（12L / min）的输出流量。降噪修改可用于对噪声有严格要求的行业应用。 所有型号均在25至125 psi（1.8至9 bar）的空气驱动压力下运行，并且手动泵选件可用于要求精确控制或没有空气驱动的应用。 IM系列共有7种，压力比为5：1至220：1。 |
|---|---|---|
| ASL 系列 |
|
ASL系列每个安装支架都有3/8“螺栓的英寸（2）x13 / 32”（10.32）插槽。 底部入口泵头和侧面嵌入式泵头是可拆的。 ASL系列提供压力比为11：1至796：1。 |
| IAGT 系列 |
|
IAGT系列所有型号的气压驱动压力在40pa至3500pa之间。入口压力达100 psi，出口压力高达25000 psi。 AGT系列共有9种，压力比为60：1。 |
| IAAD 系列 |
|
IAAD系列所有型号的气压驱动压力在40至150 psi（2.8至10.3 bar）之间。 入口压力从100 psi到1250 psi（6.9 bar到86.2 bar），出口压力高达1250 psi（86.2 bar）。 单回路流量：0.316L。AAD系列中共有2种，压力比为2：1和5：1。 |
| 冷媒加注泵系列 |
|
冷媒增压机主要应用新型环保制冷剂, 液态气体（如 co2 、sf6、氟里昴、氟龙）的回收与灌注。气体驱动安全、防爆，气体增压泵的驱动气体与被压缩气体完全分开，对压缩气体无污。 |
| IAG 系列 |
|
IAG系列共有3种，压力比为30：1和60：1和75：1。 |
高压阀件
| 阀门型号 | ||||||
| Valve Seriers | Valve Type | Connector Type | Outside Diameter Tube Size | Stem/seat type | Body Pattern | Options |
| 10=10,000PSI | V=needle | A=AF | 1=1/16" | 07=non-rotating Veestem (on-off service) | 1=2-way Straight | HT:High Temperature |
| 15=15,000PSI | B=Ball Valve | N=NPT | 2=1/8" | 08=non-rotating regulating stem (tapered tip for regulating and shutoff) | 2=2-Way Angle | N/O: Normally Open |
| 20=20,000PSI | E=Elbow | L=Medium | 4=1/4" | 87=Vee stem with Replacedable seat | 3=3-Way/2 on Pressure | N/C: Normally Closed |
| 30=30,000PSI | T=Tee | H=High | 5=5/16" | 88=Regulating stem with replaceable seat | 4=3-Way/1 on pressure | MINI-NO |
| 40=40,000PSI | C=Cross | 6=3/8" | 5=2-way Angle/Replaceable Seat | MINI-NC | ||
| 60=15,000PSI | K=Check | 8=1/2" | 6=3-way/2-stem | MPO-NO: Medium Duty Operator Normally Open | ||
| 100=100,000PSI | F=Filter | 9=9/16" | MPO-NC: Medium Duty Operator Normally Closed | |||
| 150=150,000PSI | S=Straight Coupling | 12=3/4" | HPO-NO:Heavy Duty Piston Operator Normally Open | |||
| Plug | 16=1" | HPO-NC:Heavy Duty Piston Operator Normally Closed | ||||
| G=Gland, Col or Sleeve | ||||||
参考压力可能无法反映实际压力等级，实际压力等级还请参考适用目录页，或咨询厂商，十分感谢。
| 一般型号示例： |
|---|
| HT-60-TH-4 = 60000 psi三通，用于1/4“外径管道。 |
| HT-15-EA-2 = 15000 psi，用于外径为1/8”的管道、锥形密封接头。 |
| HT-30-VH-6071-HT = 30000 psi直通阀，适用于外径为3/8”的高温管，阀杆延伸。 |
| “HTCO”HT-10-VN-4072-N/C = 10000 psi角阀，用于1/4“NPT管道，带“HTCO”空气操作器，常闭。 |
| “HTPO”HT-15-VA-4072-N/C = 10000 psi角阀，用于1/4“锥形密封，带“HTPO”活塞操作机构，常闭。 |
高压连接件
| 接头型号 | |||
| Pressure Series | Connection(s) Size and Type | ||
| Female | Male | ||
| 10=10000PSI | AF1 | AM1 | 1/16" Taper Seal |
| 15=15000PSI | AF2 | AM2 | 1/8"Taper Seal |
| 20=20000PSI | AF4 | AM4 | 1/8"Taper Seal |
| 30=30000PSI | AF6 | AM6 | 3/8"Taper Seal |
| 60=60000PSI | LF4 | LM4 | 1/4"Medium Pressure |
| 100=100000PSI | LF6 | LM6 | 3/8"Medium Pressure |
| 150=150000PSI | LF9 | LM9 | 9/16"Medium Pressure |
| LF12 | LM12 | 3/4"Medium Pressure | |
| LF16 | LM16 | 1"Medium Pressure | |
| HF2 | HM2 | 1/8"High Pressure | |
| HF4 | HM4 | 1/4"High Pressure | |
| HF6 | HM6 | 3/8"High Pressure | |
| HF9 | HM9 | 9/16"High Pressure | |
| HF16 | HM16 | 1"High Pressure | |
| XF4 | XM4 | 1/4"Ultra High Pressure | |
| XF6 | XM6 | 3/8"Ultra High Pressure | |
| NFA | NMA | 1/8"NPT Pipe | |
| NFB | NMB | 1/4"NPT Pipe | |
| NFC | NMC | 3/8"NPT Pipe | |
| NFD | NMD | 1/2"NPT Pipe | |
| NFF | NMF | 3/4"NPT Pipe | |
| NFH | NMH | 1"NPT Pipe | |
| HA9 | 9/16"Hose | ||
| HA12 | 3/4"Hose | ||
| HA16 | 1"Hose | ||
| HA21 | 1 5/16"Hose | ||
| DKOS-Metric Male | |||
| 12 - Male 120° cone | |||
硬管和手动泵
IHT硬管，主要用于油气、氢能、液压和水清洗行业，适用于液体和气体介质。
所有的过渡接头和硬管都采用V4A不锈钢材质冷成型，以适应该行业对高温及高压的特殊要求。
硬管的工作压力为690-4,140 bar，适用于多种螺纹形式。
标准的螺纹形式包括：
- JIC
- NPT
- Medium Pressure (MP) 中压
- High Pressure (HP) 高压
- Type M
- Sealing cones (metric & inch) 密封锥度（公制或英制）
连接形式：
外螺纹 x 外螺纹
内螺纹 x 内螺纹
内螺纹 x 外螺纹
母接头转公接头

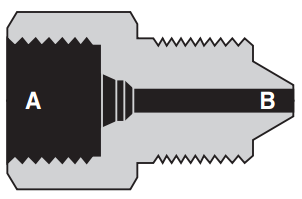

| 卡套母接头转卡套公接头 Female Taper Seal to Male Taper Seal | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 15-AF1AM2 | 15000 | 1/16" 0.D. TUBE T0 1/8"TAPER SEAL | AF1 | AM2 | 1-5/16" | 5/8" |
| 10-AF1AM4 | 10000 | 1/16" 0.D. TUBE T0 1/4”TAPER SEAL | AF1 | AM4 | 1-1/4" | 3/4" |
| 10-AF1AM6 | 10000 | 1/16" 0.D. TUBE T0 3/8"TAPER SEAL | AF1 | AM6 | 1-1/4" | 3/4" |
| 10-AF2AM4 | 10000 | 1/8" 0.D. TUBE T0 1/4"TAPER SEAL | AF2 | AM4 | 1-1/4" | 3/4" |
| 10-AF2AM6 | 10000 | 1/8" 0.D. TUBE T0 3/8"TAPER SEAL | AF2 | AM6 | 1-1/4" | 3/4" |

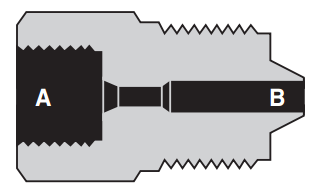

| 卡套母接头转高压公接头 Female Taper Seal to Male High Pressure | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 15-AF1HM2 | 15000 | 1/16"TS.T0 1/8"H.P MALE | AF1 | HM2 | 7/8" | 1/2" |
| 15-AF1HM4 | 15000 | 1/16"TS.T0 1/4"H.P MALE | AF1 | HM4 | 1-1/4" | 5/8" |
| 15-AF1HM6 | 15000 | 1/16"TS.T0 3/8"H.P MALE | AF1 | HM6 | 36954 | 3/4" |
| 15-AF1HM9 | 15000 | 1/16"TS.T0 9/16"H.P MALE | AF1 | HM9 | 2-1/8" | 1-1/8" |
| 15-AF2HM2 | 15000 | 1/8"TS.T0 1/8"H.P MALE | AF2 | HM2 | 1-1/8" | 5/8" |
| 15-AF2HM4 | 15000 | 1/8"TS.T0 1/4"H.P MALE | AF2 | HM4 | 1-1/4" | 5/8" |
| 15-AF2HM6 | 15000 | 1/8"TS.T0 3/8"H.P MALE | AF2 | HM6 | 1-3/4" | 3/4" |
| 15-AF2HM9 | 15000 | 1/8"TS.T0 9/16"H.P MALE | AF2 | HM9 | 2-1/8" | 1-1/8" |
| 10-AF4HM2 | 10000 | 1/4"TS.T0 1/8"H.P MALE | AF4 | HM2 | 1-7/16" | 1" |
| 10-AF4HM4 | 10000 | 1/4"TS.T0 1/4"H.P MALE | AF4 | HM4 | 1-1/2" | 1" |
| 10-AF4HM6 | 10000 | 1/4"TS.T0 3/8"H.P MALE | AF4 | HM6 | 1-5/8" | 1" |
| 10-AF4HM9 | 10000 | 1/4"TS.T0 9/16"H.P MALE | AF4 | HM9 | 2-1/8" | 1-1/8" |
| 10-AF6HM2 | 10000 | 3/8"TS.T0 1/8"H.P MALE | AF6 | HM2 | 1-1/2" | 1" |
| 10-AF6HM4 | 10000 | 3/8"TS.T0 1/4"H.P MALE | AF6 | HM4 | 1-1/2" | 1" |
| 10-AF6HM6 | 10000 | 3/8"TS.T0 3/8"H.P) MALE | AF6 | HM6 | 1-3/4" | 1" |
| 10-AF6HM9 | 10000 | 3/8"TS.T0 9/16H.P MALE | AF6 | HM9 | 2-1/8" | 1-1/8" |

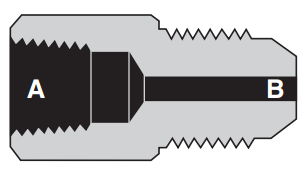

| 卡套母接头转管公接头 Female Taper Seal to Male Pipe | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 15-AF1NMA | 15000 | 1/16"T.S. TO 1/8"NPT MALE | AF1 | NMA | 1" | 1" |
| 15-AF1NMB | 15000 | 1/16"T.S. TO 1/4" NPT MALE | AF1 | NMB | 1-1/4" | 1" |
| 15-AF1NMC | 15000 | 1/16"T.S. TO 3/8" NPT MALE | AF1 | NMC | 1-3/8" | 1/2" |
| 15-AF1NMD | 15000 | 1/16"T.S. TO 1/2"NPT MALE | AF1 | NMD | 1-3/4" | 5/8" |
| 15-AF1NMF | 15000 | 1/16"T.S. TO 3/4" NPT MALE | AF1 | NMF | 1-5/8" | 3/4" |
| 15-AF1NMH | 15000 | 1/16"T.S. TO 1" NPTMALE | AF1 | NMH | 1-5/8" | 1" |
| 15-AF2NMA | 15000 | 1/8"T.S. TO 1/8" NPT MALE | AF2 | NMA | 1-1/4" | 1-3/8" |
| 15-AF2NMB | 15000 | 1/8"T.S. TO 1/4"NPT MALE | AF2 | NMB | 1-1/4" | 1-3/8" |
| 15-AF2NMC | 15000 | 1/8"T.S. TO 3/8" NPT MALE | AF2 | NMC | 1-3/8" | 3/4" |
| 15-AF2NMD | 15000 | 1/8"T.S. TO 1/2"NPT MALE | AF2 | NMD | 1-3/4" | 1" |
| 15-AF2NMF | 15000 | 1/8"T.S. TO 3/4"NPT MALE | AF2 | NMF | 1-5/8" | 1-3/8" |
| 15-AF2NMH | 15000 | 1/8"T.S. TO 1" NPTMALE | AF2 | NMH | 1-5/8" | 1-3/8" |
| 10-AF4NMA | 10000 | 1/4"T.S. TO 1/8"NPT MALE | AF4 | NMA | 1-1/2" | 1" |
| 10-AF4NMB | 10000 | 1/4"T.S. TO 1/4"NPT MALE | AF4 | NMB | 1-5/8" | 1" |
| 10-AF4NMC | 10000 | 1/4"T.S. TO 3/8"NPT MALE | AF4 | NMC | 1-5/8" | 1" |
| 10-AF4NMD | 10000 | 1/4"T.S. TO 1/2"NPT MALE | AF4 | NMD | 1-3/4" | 1" |
| 10-AF4NMF | 10000 | 1/4"T.S. TO 3/4" NPT MALE | AF4 | NMF | 1-1/2" | 1-3/8" |
| 10-AF4NMH | 10000 | 1/4"T.S. TO 1" NPTMALE | AF4 | NMH | 1-7/8" | 1-3/8" |
| 10-AF6NMA | 10000 | 3/8"T.S. TO 1/8"NPT MALE | AF6 | NMA | 1-1/2" | 1" |
| 10-AF6NMB | 10000 | 3/8"T.S. TO 1/4" NPT MALE | AF6 | NMB | 1-5/8" | 1" |
| 10-AF6NMC | 10000 | 3/8"T.S. TO 3/8" NPT MALE | AF6 | NMC | 1-5/8" | 1" |
| 10-AF6NMD | 10000 | 3/8"T.S. TO 1/2" NPT MALE | AF6 | NMD | 1-3/4" | 1" |
| 10-AF6NMF | 10000 | 3/8"T.S. TO 3/4" NPT MALE | AF6 | NMF | 1-7/8" | 1-3/8" |
| 10-AF6NMH | 10000 | 3/8"T.S. TO 1" NPTMALE | AF6 | NMH | 1-7/8" | 1-3/8" |

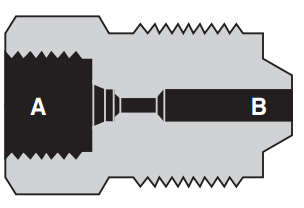

| 高压母接头转高压公接头 Female High Pressure to Male High Pressure | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 60-HF2HM4 | 60000 | 1/8"O.D. TUBE TO 1/4" H.P. | HF2 | HM4 | 1-1/4" | 3/4" |
| 60-HF2HM6 | 60000 | 1/8"O.D. TUBE TO 3/8" H.P. | HF2 | HM6 | 1-3/4" | 1-1/8" |
| 60-HF2HM9 | 60000 | 1/8"O.D. TUBE TO 9/16"H.P. | HF2 | HM9 | 2-1/8" | 3/4" |
| 60-HF4HM2 | 60000 | 1/4"O.D. TUBE TO 1/8" H.P. | HF4 | HM2 | 1-3/8" | 3/4" |
| 60-HF4HM6 | 60000 | 1/4"O.D. TUBE TO 3/8" H.P. | HF4 | HM6 | 1-3/4" | 1-1/8" |
| 60-HF4HM9 | 60000 | 1/4"O.D. TUBE TO 9/16"H.P. | HF4 | HM9 | 2-1/8" | 1" |
| 60-HF6HM2 | 60000 | 1/4"O.D. TUBE TO 1/8" H.P. | HF6 | HM2 | 1-1/2" | 1" |
| 60-HF6HM4 | 60000 | 3/8"O.D. TUBE TO 1/4" H.P. | HF6 | HM4 | 1-1/2" | 1" |
| 60-HF6HM9 | 60000 | 3/8"O.D. TUBE TO 9/16" H.P. | HF6 | HM9 | 2-1/8" | 1-1/8" |
| 60-HF9HM4 | 60000 | 9/16"O.D. TUBE TO 1/4" H.P. | HF9 | HM4 | 1-3/4" | 1-3/8" |
| 60-HF9HM6 | 60000 | 9/16"O.D. TUBE TO 3/8" H.P. | HF9 | HM6 | 1-7/8" | 1-3/8" |

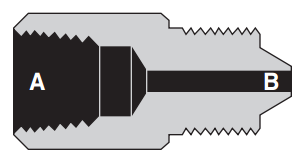

| 中压母接头转中压公接头 Female Medium Pressure to Male Medium Pressure | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 20-LF4LM6 | 20000 | 1/4"M.P FEMALE to 3/8"M.P MALE | LF4 | LM6 | 1-3/4" | 3/4" |
| 20-LF4LM9 | 20000 | 1/4"M.P FEMALE to 9/16"M.P MALE | LF4 | LM9 | 1-7/8" | 7/8" |
| 20-LF6LM4 | 20000 | 3/8"M.P FEMALE to 1/4"M.P MALE | LF6 | LM4 | 1-3/4" | 3/4" |
| 20-LF6LM9 | 20000 | 3/8"M.P FEMALE to 9/16"M.P MALE | LF6 | LM9 | 1-7/8" | 7/8" |
| 20-LF9LM4 | 20000 | 9/16"M.P FEMALE to 1/4"M.P MALE | LF9 | LM4 | 2-1/8" | 1" |
| 20-LF9LM6 | 20000 | 9/16"M.P FEMALE to 3/8"M.P MALE | LF9 | LM6 | 2-1/8" | 1" |
| 20-LF12LM4 | 20000 | 3/4"M.P FEMALE to 1/4"M.P MALE | LF12 | LM4 | 2-1/4" | 1-3/8" |
| 20-LF12LM6 | 20000 | 3/4"M.P FEMALE to 3/8"M.P MALE | LF12 | LM6 | 2-3/8" | 1-3/8" |
| 20-LF12LM9 | 20000 | 3/4"M.P FEMALE to 9/16"M.P MALE | LF12 | LM9 | 2-7/8" | 1-3/8" |
| 20-LF12LM16 | 20000 | 3/4"M.P FEMALE to 1" M.P MALE | LF12 | LM16 | 3-3/4" | 1-3/8" |
| 20-LF4LM12 | 20000 | 1/4"M.P FEMALE to 3/4"M.P MALE | LF4 | LM12 | 2" | 1-1/8" |
| 20-LF6LM12 | 20000 | 3/8"M.P FEMALE to 3/4"M.P MALE | LF6 | LM12 | 2" | 1-1/8" |
| 20-LF9LM12 | 20000 | 9/16"M.P FEMALE to 3/4"M.P MALE | LF9 | LM12 | 2-1/2" | 1-1/8" |
| 20-LF16LM4 | 20000 | 1"M.P FEMALE to 1/4"M.P MALE | LF16-30 | LM4 | 2-3/4" | 1-3/4" |
| 20-LF16LM6 | 20000 | 1"M.P FEMALE to 3/8"M.P MALE | LF16-30 | LM6 | 2-7/8" | 1-3/4" |
| 20-LF16LM9 | 20000 | 1"M.P FEMALE to 9/16"M.P MALE | LF16-30 | LM9 | 3" | 1-3/4" |
| 20-LF16LM12 | 20000 | 1"M.P FEMALE to 3/4"M.P MALE | LF16-30 | LM12 | 3-1/4" | 1-3/4" |
| 20-LF4LM16 | 20000 | 1/4"M.P FEMALE to 1" M.P MALE | LF4 | LM16 | 3" | 11-1/8" |
| 20-LF6LM16 | 20000 | 3/8"M.P FEMALE to 1" M.P MALE | LF6 | LM16 | 3-1/8" | 1" |
| 20-LF9LM16 | 20000 | 9/16"M.P FEMALE to 1" M.P MALE | LF9 | LM16 | 3-3/8" | 1" |
| 中压母接头转高压公接头 Female Medium Pressure to Male High Pressure | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 20-LF4HM4 | 20000 | 1/4"M.P FEMALE to 1/4"H.P MALE | LF4 | HM4 | 1-3/8" | 3/4" |
| 20-LF4HM6 | 20000 | 1/4"M.P FEMALE to 3/8"H.P MALE | LF4 | HM6 | 1-3/4" | 3/4" |
| 20-LF4HM9 | 20000 | 1/4"M.P FEMALE to 9/16"H.P MALE | LF4 | HM9 | 2-1/8" | 1-1/8" |
| 20-LF6HM4 | 20000 | 3/8"M.P FEMALE to 1/4"H.P MALE | LF6 | HM4 | 1-3/4" | 3/4" |
| 20-LF6HM6 | 20000 | 3/8"M.P FEMALE to 3/8"H.P MALE | LF6 | HM6 | 1-3/4" | 3/4" |
| 20-LF6HM9 | 20000 | 3/8M.P FEMALE to 9/16"H.P MALE | LF6 | HM9 | 2-1/8" | 1-1/8" |
| 20-LF9HM4 | 20000 | 9/16"M.P FEMALE to 1/4"H.P MALE | LF9 | HM4 | 1-7/8" | 1" |
| 20-LF9HM6 | 20000 | 9/16"M.P FEMALE to 3/8"H.P MALE | LF9 | HM6 | 2-1/8" | 1" |
| 20-LF9HM9 | 20000 | 9/16"M.P FEMALE to 9/16"H.P MALE | LF9 | HM9 | 2-1/8" | 1-1/8" |
| 20-LF12HM4 | 20000 | 3/4"M.P FEMALE to 1/4"H.P MALE | LF12 | HM4 | 2-1/2" | 1-3/8" |
| 20-LF12HM6 | 20000 | 3/4"M.P FEMALE to 3/8"H.P MALE | LF12 | HM6 | 2-3/8" | 1-3/8" |
| 20-LF12HM9 | 20000 | 3/4"M.P FEMALE to 9/16"H.P MALE | LF12 | HM9 | 2-5/8" | 1-3/8" |
| *20-LF16HM4 | 20000 | 1" M.P FEMALE to 1/4"H.P MALE | LF16 | HM4 | 2-5/8" | 1-3/4" |
| *20-LF16HM6 | 20000 | 1" M.P FEMALE to 3/8"H.P MALE | LF16 | HM6 | 2-7/8" | 1-3/4" |
| *20-LF16HM9 | 20000 | 1" M.P FEMALE to 9/16"H.P MALE | LF16 | HM9 | 3-1/8" | 1-3/4" |
| 中压母接头转管公接头 Female Medium Pressure to Male Pipe | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 20-LF4NMA | 15000 | 1/4"M.P. FEMALE to 1/8" NPT MALE | LF4 | NMA | 1-7/16" | 3/4" |
| 20-LF4NMB | 15000 | 1/4"M.P. FEMALE to 1/4" NPT MALE | LF4 | NMB | 1-5/8" | 3/4" |
| 20-LF4NMC | 15000 | 1/4"M.P. FEMALE to 3/8" NPT MALE | LF4 | NMC | 1-5/8" | 3/4" |
| 20-LF4NMD | 15000 | 1/4"M.P. FEMALE to 1/2" NPT MALE | LF4 | NMD | 1-3/4" | 1" |
| 10-LF4NMF | 10000 | 1/4"M.P. FEMALE to 3/4" NPT MALE | LF4 | NMF | 1-7/8" | 1-3/8" |
| 10-LF4NMH | 10000 | 1/4"M.P. FEMALE to 1" NPT MALE | LF4 | NMH | 1-7/8" | 1-3/8" |
| 20-LF6NMA | 15000 | 3/8"M.P. FEMALE to 1/8" NPT MALE | LF6 | NMA | 1-7/16" | 3/4" |
| 20-LF6NMB | 15000 | 3/8"M.P. FEMALE to 1/4" NPT MALE | LF6 | NMB | 1-5/8" | 3/4" |
| 20-LF6NMC | 15000 | 3/8"M.P. FEMALE to 3/8" NPT MALE | LF6 | NMC | 1-5/8" | 3/4" |
| 20-LF6NMD | 15000 | 3/8"M.P. FEMALE to 1/2" NPT MALE | LF6 | NMD | 1-3/4" | 1" |
| 10-LF6NMF | 10000 | 3/8"M.P. FEMALE to 3/4" NPT MALE | LF6 | NMF | 1-7/8" | 1-3/8" |
| 10-LF6NMH | 10000 | 3/8"M.P. FEMALE to 1" NPT MALE | LF6 | NMH | 1-7/8" | 1-3/8" |
| 20-LF9NMA | 15000 | 9/16"M.P. FEMALE to 1/8" NPT MALE | LF9 | NMA | 1-7/8" | 1" |
| 20-LF9NMB | 15000 | 9/16"M.P. FEMALE to 1/4" NPT MALE | LF9 | NMB | 1-7/8" | 1" |
| 20-LF9NMC | 15000 | 9/16"M.P. FEMALE to 3/8" NPT MALE | LF9 | NMC | 1-7/8" | 1" |
| 20-LF9NMD | 15000 | 9/16"M.P. FEMALE to 1/2" NPT MALE | LF9 | NMD | 1-7/8" | 1" |
| 10-LF9NMF | 10000 | 9/16"M.P. FEMALE to 3/4" NPT MALE | LF9 | NMF | 1-7/8" | 1-3/8" |
| 10-LF9NMH | 10000 | 9/16"M.P. FEMALE to 1" NPT MALE | LF9 | NMH | 1-7/8" | 1-3/8" |
| 20-LF12NMA | 15000 | 3/4"M.P. FEMALE to 1/8" NPT MALE | LF12 | NMA | 2-1/2" | 1-3/8" |
| 20-LF12NMB | 15000 | 3/4"M.P. FEMALE to 1/4" NPT MALE | LF12 | NMB | 2-1/2" | 1-3/8" |
| 20-LF12NMC | 15000 | 3/4"M.P. FEMALE to 3/8" NPT MALE | LF12 | NMC | 2-1/2" | 1-3/8" |
| 20-LF12NMD | 15000 | 3/4"M.P. FEMALE to 1/2" NPT MALE | LF12 | NMD | 2-1/2" | 1-3/8" |
| 10-LF12NMF | 10000 | 3/4"M.P. FEMALE to 3/4" NPT MALE | LF12 | NMF | 2-1/2" | 1-3/8" |
| 10-LF12NMH | 10000 | 3/4"M.P. FEMALE to 1" NPT MALE | LF12 | NMH | 2-1/2" | 1-3/8" |
| 20-LF16NMA | 15000 | 1" M.P. FEMALE to 1/8"NPT MALE | LF16-30 | NMA | 2-1/2" | 1-3/4" |
| 20-LF16NMB | 15000 | 1" M.P. FEMALE to 1/4"NPT MALE | LF16-30 | NMB | 2-1/2" | 1-3/4" |
| 20-LF16NMC | 15000 | 1" M.P. FEMALE to 3/8"NPT MALE | LF16-30 | NMC | 2-1/2" | 1-3/4" |
| 20-LF16NMD | 15000 | 1" M.P. FEMALE to 1/2"NPT MALE | LF16-30 | NMD | 2-1/2" | 1-3/4" |
| 10-LF16NMF | 10000 | 1" M.P. FEMALE to 3/4"NPT MALE | LF16-30 | NMF | 2-1/2" | 1-3/4" |
| 10-LF16NMH | 10000 | 1" M.P. FEMALE to 1" NPT MALE | LF16-30 | NMH | 2-1/2" | 1-3/4" |
| 管母接头接高压公接头 Female Pipe to Male High Pressure | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 30-NFAHM2 | 15000 | 1/8"NPT TO 1/8"H.P. MALE | NFA | HM2 | 1-5/8" | 3/4" |
| 30-NFBHM2 | 15000 | 1/4"NPT TO 1/8"H.P. MALE | NFB | HM2 | 1-5/8" | 3/4" |
| 30-NFCHM2 | 15000 | 3/8"NPT TO 1/8"H.P. MALE | NFC | HM2 | 1-3/4" | 1" |
| 30-NFAHM4 | 15000 | 1/8"NPT TO 1/4"H.P. MALE | NFA | HM4 | 1-5/8" | 3/4" |
| 30-NFBHM4 | 15000 | 1/4"NPT TO 1/4"H.P. MALE | NFB | HM4 | 1-3/4" | 3/4" |
| 30-NFCHM4 | 15000 | 3/8"NPT TO 1/4"H.P. MALE | NFC | HM4 | 1-3/4" | 1" |
| 30-NFDHM4 | 15000 | 1/2"NPT TO 1/4"H.P. MALE | NFD | HM4 | 2-1/8" | 1-1/8" |
| 30-NFAHM6 | 15000 | 1/8"NPT TO 3/8"H.P. MALE | NFA | HM6 | 1-5/8" | 3/4" |
| 30-NFBHM6 | 15000 | 1/4"NPT TO 3/8"H.P. MALE | NFB | HM6 | 1-3/4" | 3/4" |
| 30-NFCHM6 | 15000 | 3/8"NPT TO 3/8"H.P. MALE | NFC | HM6 | 1-3/4" | 1" |
| 30-NFDHM6 | 15000 | 1/2"NPTTO 3/8"H.P. MALE | NFD | HM6 | 2-1/8" | 1-1/8" |
| 10-NFFHM6 | 10000 | 3/4"NPT TO 3/8"H.P. MALE | NFF | HM6 | 2-1/2" | 1-5/8" |
| 30-NFAHM9 | 15000 | 1/8"NPT TO 9/16"H.P. MALE | NFA | HM9 | 2-1/8" | 1-1/8" |
| 30-NFBHM9 | 15000 | 1/4"NPT TO 9/16"H.P. MALE | NFB | HM9 | 2-1/8" | 1-1/8" |
| 30-NFCHM9 | 15000 | 3/8"NPT TO 9/16"H.P. MALE | NFC | HM9 | 2-1/8" | 1-1/8" |
| 30-NFDHM9 | 15000 | 1/2"NPT TO 9/16"H.P. MALE | NFD | HM9 | 2-1/8" | 1-1/8" |
| 10-NFFHM9 | 10000 | 3/4"NPT TO 9/16"H.P. MALE | NFF | HM9 | 2-1/4" | 1-3/8" |
| 10-NFHHM9 | 10000 | 1"NPT TO 9/16"H.P. MALE | NFH | HM9 | 2" | 1-7/8" |
| 高压母接头转中压公接头 Female High Pressure to Male Medium Pressure | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 20-HF4LM4 | 20000 | 1/4"H.P. FEMALE to 1/4"M.P. MALE | HF4 | LM4 | 1-3/4" | 3/4" |
| 20-HF4LM6 | 20000 | 1/4"H.P. FEMALE to 3/8"M.P. MALE | HF4 | LM6 | 1-3/4" | 3/4" |
| 20-HF4LM9 | 20000 | 1/4" H.P. FEMALE to 9/16" M.P. MALE | HF4 | LM9 | 1-7/8" | 7/8" |
| 20-HF6LM4 | 20000 | 3/8"H.P. FEMALE to 1/4"M.P. MALE | HF6 | LM4 | 1-7/8" | 1" |
| 20-HF6LM6 | 20000 | 3/8"H.P. FEMALE to 3/8"M.P. MALE | HF6 | LM6 | 1-7/8" | 1" |
| 20-HF6LM9 | 20000 | 3/8" H.P. FEMALE to 9/16" M.P. MALE | HF6 | LM9 | 2" | 1" |
| 20-HF9LM4 | 20000 | 9/16"H.P. FEMALE to 1/4"M.P. MALE | HF9 | LM4 | 2-1/8" | 1-3/8" |
| 20-HF9LM6 | 20000 | 9/16"H.P. FEMALE to 3/8"M.P. MALE | HF9 | LM6 | 2-1/8" | 1-3/8" |
| 20-HF9LM9 | 20000 | 9/16" H.P. FEMALE to 9/16" M.P. MALE | HF9 | LM9 | 2-3/8" | 1-3/8" |
| 20-HF4LM12 | 20000 | 1/4"H.P. FEMALE to 3/4"M.P. MALE | HF4 | LM12 | 2-1/4" | 1-1/8" |
| 20-HF6LM12 | 20000 | 3/8"H.P. FEMALE to 3/4"M.P. MALE | HF6 | LM12 | 2-1/4" | 1-1/8" |
| 20-HF9LM12 | 20000 | 9/16"H.P. FEMALE to 3/4"M.P. MALE | HF9 | LM12 | 2-1/2" | 1-3/8" |
| 20-HF4LM16 | 20000 | 1/4"H.P. FEMALE to 1" M.P. MALE | HF4 | LM16 | 3" | 1" |
| 20-HF6LM16 | 20000 | 3/8"H.P. FEMALE to 1" M.P. MALE | HF6 | LM16 | 3-1/4" | 1" |
| 20-HF9LM16 | 20000 | 9/16"H.P. FEMALE to 1" M.P. MALE | HF9 | LM16 | 3-5/8" | 1-3/8" |
| 20-HF4LM16 | 20000 | 1/4"H.P. FEMALE to 1" M.P. MALE | HF4 | LM16-30 | 3" | 1" |
| 20-HF6LM16 | 20000 | 3/8"H.P. FEMALE to 1" M.P. MALE | HF6 | LM16-30 | 3-1/4" | 1" |
| 20-HF9LM16 | 20000 | 9/16"H.P. FEMALE to 1" M.P. MALE | HF9 | LM16-30 | 3-5/8" | 1-3/8" |
| 高压母接头转管公接头 Female High Pressure to Male Pipe | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 30-HF2NMA | 15000 | 1/8" H.P. TO 1/8" NPT MALE | HF2 | NMA | 1-1/4" | 5/8" |
| 30-HF2NMB | 15000 | 1/8" H.P. TO 1/4" NPT MALE | HF2 | NMB | 1-1/4" | 5/8" |
| 30-HF2NMC | 15000 | 1/8" H.P. TO 3/8" NPT MALE | HF2 | NMC | 1-3/8" | 3/4" |
| 30-HF2NMD | 15000 | 1/8" H.P. TO 1/2" NPT MALE | HF2 | NMD | 1-1/2" | 1" |
| 10-HF2NMF | 10000 | 1/8" H.P. TO 3/4" NPT MALE | HF2 | NMF | 1-3/4" | 1-3/8" |
| 10-HF2NMH | 10000 | 1/8" H.P. TO 1 " NPT MALE | HF2 | NMH | 1-3/4" | 1-3/8" |
| 30-HF4NMA | 15000 | 1/4" H.P. TO 1/8" NPT MALE | HF4 | NMA | 1-1/4" | 3/4" |
| 30-HF4NMB | 15000 | 1/4" H.P. TO 1/4" NPT MALE | HF4 | NMB | 1-3/8" | 3/4" |
| 30-HF4NMC | 15000 | 1/4" H.P. TO 3/8" NPT MALE | HF4 | NMC | 1-3/8" | 3/4" |
| 30-HF4NMD | 15000 | 1/4" H.P. TO 1/2" NPT MALE | HF4 | NMD | 1-3/4" | 1" |
| 10-HF4NMF | 10000 | 1/4" H.P. TO 3/4" NPT MALE | HF4 | NMF | 1-3/4" | 1-3/8" |
| 10-HF4NMH | 10000 | 1/4"H.P. TO 1" NPT MALE | HF4 | NMH | 1-5/8" | 1-3/8" |
| 30-HF6NMA | 15000 | 3/8" H.P. TO 1/8" NPT MALE | HF6 | NMA | 1-1/2" | 1" |
| 30-HF6NMB | 15000 | 3/8" H.P. TO 1/4" NPT MALE | HF6 | NMB | 1-5/8" | 1" |
| 30-HF6NMC | 15000 | 3/8" H.P. TO 3/8" NPT MALE | HF6 | NMC | 1-5/8" | 1" |
| 30-HF6NMD | 15000 | 3/8" H.P. TO 1/2" NPT MALE | HF6 | NMD | 1-3/4" | 1" |
| 10-HF6NMF | 10000 | 3/8" H.P. TO 3/4" NPT MALE | HF6 | NMF | 1-7/8" | 1-3/8" |
| 10-HF6NMH | 10000 | 3/8"H.P. TO 1 "NPT MALE | HF6 | NMH | 1-7/8" | 1-3/8" |
| 30-HF9NMA | 15000 | 9/16" H.P. TO 1/8" NPT MALE | HF9 | NMA | 1-1/2" | 1-3/8" |
| 30-HF9NMB | 15000 | 9/16" H.P. TO 1/4" NPT MALE | HF9 | NMB | 1-5/8" | 1-3/8" |
| 30-HF9NMC | 15000 | 9/16" H.P. TO 3/8" NPT MALE | HF9 | NMC | 1-3/4" | 1-3/8" |
| 30-HF9NMD | 15000 | 9/16" H.P. TO 1/2" NPT MALE | HF9 | NMD | 1-7/8" | 1-3/8" |
| 10-HF9NMF | 10000 | 9/16" H.P. TO 3/4" NPT MALE | HF9 | NMF | 1-7/8" | 1-3/8" |
| 10-HF9NMH | 10000 | 9/16"H.P. TO 1 "NPT MALE | HF9 | NMH | 2" | 1-3/8" |
| 管母接头转卡套公接头 Female Pipe to Male Taper Seal | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 15-NFAAM2 | 15000 | 1/8" FNPT TO 1/8" MALE T.S. | NFA | AM2 | 1-1/2" | 5/8" |
| 15-NFBAM2 | 15000 | 1/4" FNPT TO 1/8" MALE T.S. | NFB | AM2 | 1-5/8" | 3/4" |
| 15-NFCAM2 | 15000 | 3/8" FNPT TO 1/8"MALE T.S. | NFC | AM2 | 1-3/4" | 1" |
| 10-NFAAM4 | 10000 | 1/8" FNPT TO 1/4" MALE T.S. | NFA | AM4 | 1-3/4" | 7/8" |
| 10-NFBAM4 | 10000 | 1/4" FNPT TO 1/4" MALE T.S. | NFB | AM4 | 1-3/4" | 1" |
| 10-NFCAM4 | 10000 | 3/8" FNPT TO 1/4"MALE T.S. | NFC | AM4 | 1-3/4" | 1" |
| 10-NFDAM4 | 10000 | 1/2" FNPT TO 1/4" MALE T.S. | NFD | AM4 | 2-1/8" | 1-1/8" |
| 10-NFAAM6 | 10000 | 1/8" FNPT TO 3/8"MALE T.S. | NFA | AM6 | 2" | 1" |
| 10-NFBAM6 | 10000 | 1/4" FNPT TO 3/8"MALE T.S. | NFB | AM6 | 2" | 1" |
| 10-NFCAM6 | 10000 | 3/8" FNPT TO 3/8"MALE T.S. | NFC | AM6 | 2" | 1" |
| 10-NFDAM6 | 10000 | 1/2" FNPT TO 3/8"MALE T.S. | NFD | AM6 | 2-1/8" | 1-1/8" |
| 管母接头转中压公接头 Female Pipe to Male Medium Pressure | ||||||
| 型号 | 压力等级 | 连接 | A | B | 长度 | 六角尺寸 |
| Catalog Number | PressureRating （psi） | Connections | Length （inch） | Hex Size （inch） | ||
| 20-NFALM4 | 15000 | 1/8"N.P.T. FEMALE to 1/4"M.P. MALE | NFA | LM4 | 1-3/4" | 3/4" |
| 20-NFBLM4 | 15000 | 1/4"N.P.T. FEMALE to 1/4"M.P. MALE | NFB | LM4 | 1-3/4" | 3/4" |
| 20-NFCLM4 | 15000 | 3/8"N.P.T. FEMALE to 1/4"M.P. MALE | NFC | LM4 | 2" | 1" |
| 20-NFDLM4 | 15000 | 1/2"N.P.T. FEMALE to 1/4"M.P. MALE | NFD | LM4 | 2-1/8" | 1-1/8" |
| 10-NFFLM4 | 10000 | 3/4"N.P.T. FEMALE to 1/4"M.P. MALE | NFF | LM4 | 2-3/8" | 1-3/8" |
| 20-NFALM6 | 15000 | 1/8"N.P.T. FEMALE to 3/8"M.P. MALE | NFA | LM6 | 1-7/8" | 3/4" |
| 20-NFBLM6 | 15000 | 1/4"N.P.T. FEMALE to 3/8"M.P. MALE | NFB | LM6 | 1-7/8" | 3/4" |
| 20-NFCLM6 | 15000 | 3/8"N.P.T. FEMALE to 3/8"M.P. MALE | NFC | LM6 | 2-1/8" | 1" |
| 20-NFDLM6 | 15000 | 1/2"N.P.T. FEMALE to 3/8"M.P. MALE | NFD | LM6 | 2-1/4" | 1-1/8" |
| 10-NFFLM6 | 10000 | 3/4"N.P.T. FEMALE to 3/8"M.P. MALE | NFF | LM6 | 2-1/2" | 1-3/8" |
| 10-NFHLM6 | 10000 | 1" N.P.T. FEMALE to 3/8"M.P. MALE | NFH | LM6 | 2-7/8" | 1-7/8" |
| 20-NFALM9 | 15000 | 1/8" N.P.T. FEMALE to 9/16"M.P. MALE | NFA | LM9 | 1-7/8" | 7/8" |
| 20-NFBLM9 | 15000 | 1/4" N.P.T. FEMALE to 9/16" M.P. MALE | NFB | LM9 | 1-7/8" | 7/8" |
| 20-NFCLM9 | 15000 | 3/8" N.P.T. FEMALE to 9/16" M.P. MALE | NFC | LM9 | 2-1/4" | 1" |
| 20-NFDLM9 | 15000 | 1/2" N.P.T. FEMALE to 9/16" M.P. MALE | NFD | LM9 | 2-3/8" | 1-1/8" |
| 10-NFFLM9 | 10000 | 3/4" N.P.T. FEMALE to 9/16" M.P. MALE | NFF | LM9 | 2-5/8" | 1-3/8" |
| 10-NFHLM9 | 10000 | 1" N.P.T. FEMALE to 9/16"M.P. MALE | NFH | LM9 | 3" | 1-7/8" |
| 20-NFALM12 | 15000 | 1/8"N.P.T. FEMALE to 3/4"M.P. MALE | NFA | LM12 | 2" | 1-1/8" |
| 20-NFBLM12 | 15000 | 1/4"N.P.T. FEMALE to 3/4"M.P. MALE | NFB | LM12 | 2" | 1-1/8" |
| 20-NFCLM12 | 15000 | 3/8"N.P.T. FEMALE to 3/4"M.P. MALE | NFC | LM12 | 2" | 1-1/8" |
| 20-NFDLM12 | 15000 | 1/2"N.P.T. FEMALE to 3/4"M.P. MALE | NFD | LM12 | 2-1/2" | 1-1/8" |
| 10-NFFLM12 | 10000 | 3/4"N.P.T. FEMALE to 3/4"M.P. MALE | NFF | LM12 | 2-3/4" | 1-1/2" |
| 10-NFHLM12 | 10000 | 1" N.P.T. FEMALE to 3/4"M.P. MALE | NFH | LM12 | 3" | 1-7/8" |
| 20-NFALM16 | 15000 | 1/8"N.P.T. FEMALE to 1"M.P. MALE | NFA | LM16 | 3" | 1" |
| 20-NFBLM16 | 15000 | 1/4"N.P.T. FEMALE to 1" M.P. MALE | NFB | LM16 | 3" | 1" |
| 20-NFCLM16 | 15000 | 3/8"N.P.T. FEMALE to 1" M.P. MALE | NFC | LM16 | 3" | 1" |
| 20-NFDLM16 | 15000 | 1/2"N.P.T. FEMALE to 1" M.P. MALE | NFD | LM16 | 3-3/4" | 1-1/8" |
| 10-NFFLM16 | 10000 | 3/4"N.P.T. FEMALE to 1" M.P. MALE | NFF | LM16 | 4-1/8" | 1-1/2" |
| 10-NFHLM16 | 10000 | 1" N.P.T. FEMALE to 1" M.P. MALE | NFH | LM16 | 4-3/8" | 1-7/8" |
