Pump Catalog Numbering System
IHT泵需要压缩空气驱动即可产生压力。泵可以连接到现场现有的压缩空气管道系统即可，不需要连接电源就可以产生压力。 采用压缩空气驱动的优点：
- 通过手动压力控制阀或气控阀即可调节压力
- 由空气驱动，特别适用于防爆应用领域由空气驱动，特别适用于防爆应用领域
- 能够达到预设定的最终压力
- 自动由泵进行补压
- 长期保压而不消耗能量
- 保压时介质不会产生过热现象
- 便于安装、维护成本低、只需连接气源、入口管线及压力管线即可
- 运行可靠、维护成本低、运行时噪音小
| IM 系列 |
|
IM系列可以提供高达3gpm（12L / min）的输出流量。降噪修改可用于对噪声有严格要求的行业应用。 所有型号均在25至125 psi（1.8至9 bar）的空气驱动压力下运行，并且手动泵选件可用于要求精确控制或没有空气驱动的应用。 IM系列共有7种，压力比为5：1至220：1。 |
|---|---|---|
| ASL 系列 |
|
ASL系列每个安装支架都有3/8“螺栓的英寸（2）x13 / 32”（10.32）插槽。 底部入口泵头和侧面嵌入式泵头是可拆的。 ASL系列提供压力比为11：1至796：1。 |
| IAGT 系列 |
|
IAGT系列所有型号的气压驱动压力在40pa至3500pa之间。入口压力达100 psi，出口压力高达25000 psi。 AGT系列共有9种，压力比为60：1。 |
| IAAD 系列 |
|
IAAD系列所有型号的气压驱动压力在40至150 psi（2.8至10.3 bar）之间。 入口压力从100 psi到1250 psi（6.9 bar到86.2 bar），出口压力高达1250 psi（86.2 bar）。 单回路流量：0.316L。AAD系列中共有2种，压力比为2：1和5：1。 |
| 冷媒加注泵系列 |
|
冷媒增压机主要应用新型环保制冷剂, 液态气体（如 co2 、sf6、氟里昴、氟龙）的回收与灌注。气体驱动安全、防爆，气体增压泵的驱动气体与被压缩气体完全分开，对压缩气体无污。 |
| IAG 系列 |
|
IAG系列共有3种，压力比为30：1和60：1和75：1。 |
高压阀件
| 阀门型号 | ||||||
| Valve Seriers | Valve Type | Connector Type | Outside Diameter Tube Size | Stem/seat type | Body Pattern | Options |
| 10=10,000PSI | V=needle | A=AF | 1=1/16" | 07=non-rotating Veestem (on-off service) | 1=2-way Straight | HT:High Temperature |
| 15=15,000PSI | B=Ball Valve | N=NPT | 2=1/8" | 08=non-rotating regulating stem (tapered tip for regulating and shutoff) | 2=2-Way Angle | N/O: Normally Open |
| 20=20,000PSI | E=Elbow | L=Medium | 4=1/4" | 87=Vee stem with Replacedable seat | 3=3-Way/2 on Pressure | N/C: Normally Closed |
| 30=30,000PSI | T=Tee | H=High | 5=5/16" | 88=Regulating stem with replaceable seat | 4=3-Way/1 on pressure | MINI-NO |
| 40=40,000PSI | C=Cross | 6=3/8" | 5=2-way Angle/Replaceable Seat | MINI-NC | ||
| 60=15,000PSI | K=Check | 8=1/2" | 6=3-way/2-stem | MPO-NO: Medium Duty Operator Normally Open | ||
| 100=100,000PSI | F=Filter | 9=9/16" | MPO-NC: Medium Duty Operator Normally Closed | |||
| 150=150,000PSI | S=Straight Coupling | 12=3/4" | HPO-NO:Heavy Duty Piston Operator Normally Open | |||
| Plug | 16=1" | HPO-NC:Heavy Duty Piston Operator Normally Closed | ||||
| G=Gland, Col or Sleeve | ||||||
参考压力可能无法反映实际压力等级，实际压力等级还请参考适用目录页，或咨询厂商，十分感谢。
| 一般型号示例： |
|---|
| HT-60-TH-4 = 60000 psi三通，用于1/4“外径管道。 |
| HT-15-EA-2 = 15000 psi，用于外径为1/8”的管道、锥形密封接头。 |
| HT-30-VH-6071-HT = 30000 psi直通阀，适用于外径为3/8”的高温管，阀杆延伸。 |
| “HTCO”HT-10-VN-4072-N/C = 10000 psi角阀，用于1/4“NPT管道，带“HTCO”空气操作器，常闭。 |
| “HTPO”HT-15-VA-4072-N/C = 10000 psi角阀，用于1/4“锥形密封，带“HTPO”活塞操作机构，常闭。 |
高压连接件
| 接头型号 | |||
| Pressure Series | Connection(s) Size and Type | ||
| Female | Male | ||
| 10=10000PSI | AF1 | AM1 | 1/16" Taper Seal |
| 15=15000PSI | AF2 | AM2 | 1/8"Taper Seal |
| 20=20000PSI | AF4 | AM4 | 1/8"Taper Seal |
| 30=30000PSI | AF6 | AM6 | 3/8"Taper Seal |
| 60=60000PSI | LF4 | LM4 | 1/4"Medium Pressure |
| 100=100000PSI | LF6 | LM6 | 3/8"Medium Pressure |
| 150=150000PSI | LF9 | LM9 | 9/16"Medium Pressure |
| LF12 | LM12 | 3/4"Medium Pressure | |
| LF16 | LM16 | 1"Medium Pressure | |
| HF2 | HM2 | 1/8"High Pressure | |
| HF4 | HM4 | 1/4"High Pressure | |
| HF6 | HM6 | 3/8"High Pressure | |
| HF9 | HM9 | 9/16"High Pressure | |
| HF16 | HM16 | 1"High Pressure | |
| XF4 | XM4 | 1/4"Ultra High Pressure | |
| XF6 | XM6 | 3/8"Ultra High Pressure | |
| NFA | NMA | 1/8"NPT Pipe | |
| NFB | NMB | 1/4"NPT Pipe | |
| NFC | NMC | 3/8"NPT Pipe | |
| NFD | NMD | 1/2"NPT Pipe | |
| NFF | NMF | 3/4"NPT Pipe | |
| NFH | NMH | 1"NPT Pipe | |
| HA9 | 9/16"Hose | ||
| HA12 | 3/4"Hose | ||
| HA16 | 1"Hose | ||
| HA21 | 1 5/16"Hose | ||
| DKOS-Metric Male | |||
| 12 - Male 120° cone | |||
硬管和手动泵
IHT硬管，主要用于油气、氢能、液压和水清洗行业，适用于液体和气体介质。
所有的过渡接头和硬管都采用V4A不锈钢材质冷成型，以适应该行业对高温及高压的特殊要求。
硬管的工作压力为690-4,140 bar，适用于多种螺纹形式。
标准的螺纹形式包括：
- JIC
- NPT
- Medium Pressure (MP) 中压
- High Pressure (HP) 高压
- Type M
- Sealing cones (metric & inch) 密封锥度（公制或英制）
连接形式：
外螺纹 x 外螺纹
内螺纹 x 内螺纹
内螺纹 x 外螺纹

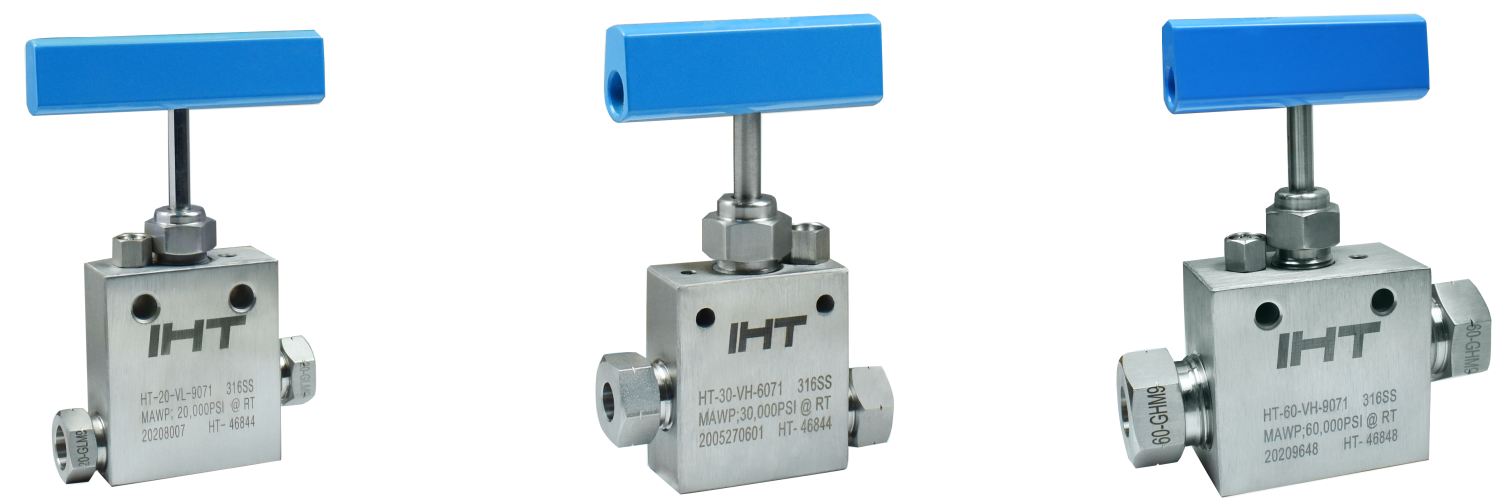

HT-10-VN系列
| 型号 | 管外径 | 通径 | 尺寸 英寸（毫米） | 阀体厚度 | |||||||||||
| Catalog Number | Outside Diameter Tube inch(mm) | Orifice Diameter inch(mm) | Dimensions inch(mm) | Block Thickness inch(mm) | |||||||||||
| A | B | C | D | D1 | E | F | G | G1 | H | M | N | ||||
| 两位直通针阀 Two-Way Straight | |||||||||||||||
| HT-10-VN-2071 | 1/8 | 0.094 | 1.50 | 0.75 | 0.31 | 1.06 | 0.81 | 1.38 | 3.00 | 0.62 | 0.17 | 3.75 | 0.56 | 0.31 | 0.62 |
| (3.18) | (2.39) | (38.10) | (19.05) | (7.87) | (26.92) | (20.57) | (35.05) | (76.20) | (15.75) | (4.32) | (95.25) | (14.22) | (7.87) | (15.75) | |
| HT-10-VN-4071 | 1/4 | 0.125 | 2.00 | 1.00 | 0.56 | 1.19 | 1.69 | 3.00 | 0.97 | 0.22 | 4.44 | 0.69 | 0.38 | 1.00 | |
| (6.35) | (3.18) | (50.80) | (25.40) | (14.22) | (30.23) | (42.93) | (76.20) | (24.64) | (5.59) | (112.78) | (17.53) | (9.65) | (24.40) | ||
| HT-10-VN-6071 | 3/8 | 0.125 | 2.00 | 1.00 | 0.56 | 1.19 | 1.69 | 3.00 | 0.97 | 0.22 | 4.31 | 0.69 | 0.38 | 1.00 | |
| (9.53) | (3.18) | (50.80) | (25.40) | (14.22) | （30.23） | （42.93） | （76.20） | （24.64） | （5.59） | （109.47） | （17.53） | （9.65） | （25.40） | ||
| HT-10-VN-8071 | 1/2 | 0.25 | 2.50 | 1.25 | 0.53 | 1.25 | 1.81 | 3.00 | 0.97 | 0.22 | 4.44 | 0.69 | 0.38 | 1.00 | |
| (12.70) | （6.35） | （63.50） | （31.75） | （13.46） | （31.75） | （45.97） | （76.20） | （24.64） | （5.59） | （112.78） | （17.53） | （9.65） | （25.40） | ||

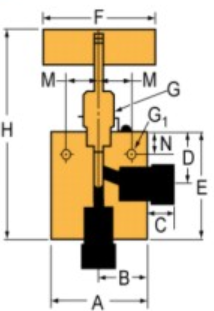

| 两位直角针阀 Two-Way Angle | |||||||||||||||
| HT-10-VN-2072 | 1/8 | 0.094 | 1.50 | 0.75 | 0.31 | 0.81 | 1.56 | 3.00 | 0.62 | 0.17 | 3.94 | 0.50 | 0.31 | 0.62 | |
| (3.18) | (2.39) | (38.10) | (19.05) | (7.87) | (20.57) | (39.62) | (76.20) | (15.75) | (4.32) | (100.08) | (12.70) | (7.87) | (15.75) | ||
| HT-10-VN-4072 | 1/4 | 0.125 | 2.00 | 1.00 | 0.56 | 1.19 | 2.19 | 3 | 0.97 | 0.22 | 4.81 | 0.69 | 0.31 | 1.00 | |
| (6.35) | (3.18) | (50.80) | (25.40) | (14.22) | (30.23) | (55.63) | (76.20) | (24.64) | (5.59) | (122.17) | (17.53) | (7.87) | (24.40) | ||
| HT-10-VN-6072 | 3/8 | 0.125 | 2.00 | 1.00 | 0.56 | 1.19 | 2.19 | 3.00 | 0.97 | 0.22 | 4.81 | 0.69 | 0.31 | 1.00 | |
| (9.53) | (3.18) | (50.80) | (25.40) | (14.22) | （30.23） | (55.63) | （76.20） | （24.64） | （5.59） | (122.17) | （17.53） | (7.87) | （25.40） | ||
| HT-10-VN-8072 | 1/2 | 0.25 | 2.50 | 1.25 | 0.53 | 1.25 | 2.50 | 3.00 | 0.97 | 0.22 | 5.06 | 0.69 | 0.38 | 1.00 | |
| (12.70) | （6.35） | （63.50） | （31.75） | （13.46） | （31.75） | (63.50) | （76.20） | （24.64） | （5.59） | (128.52) | （17.53） | （9.65） | （25.40） | ||

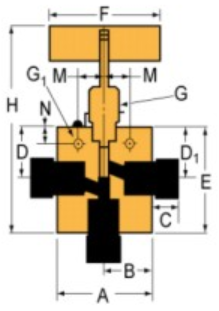

| 三通针阀（两进口） Three-Way （Two on pressure） | |||||||||||||||
| HT-10-VN-2073 | 1/8 | 0.094 | 1.50 | 0.75 | 0.31 | 1.06 | 0.81 | 1.69 | 3.00 | 0.62 | 0.17 | 4.06 | 0.50 | 0.31 | 0.62 |
| (3.18) | (2.39) | (38.10) | (19.05) | (7.87) | (26.92) | (20.57) | (42.93) | (76.20) | (15.75) | (4.32) | (103.12) | (12.70) | (7.87) | (15.75) | |
| HT-10-VN-4073 | 1/4 | 0.125 | 2.00 | 1.00 | 0.56 | 1.19 | 2.19 | 3 | 0.97 | 0.22 | 4.81 | 0.69 | 0.38 | 1.00 | |
| (6.35) | (3.18) | (50.80) | (25.40) | (14.22) | (30.23) | (55.63) | (76.20) | (24.64) | (5.59) | （122.17） | (17.53) | (9.65) | (24.40) | ||
| HT-10-VN-6073 | 3/8 | 0.125 | 2.00 | 1.00 | 0.56 | 1.19 | 2.19 | 3.00 | 0.97 | 0.22 | 4.81 | 0.69 | 0.38 | 1.00 | |
| (9.53) | (3.18) | (50.80) | (25.40) | (14.22) | （30.23） | (55.63) | （76.20） | （24.64） | （5.59） | （122.17） | （17.53） | （9.65） | （25.40） | ||
| HT-10-VN-8073 | 1/2 | 0.25 | 2.50 | 1.25 | 0.53 | 1.25 | 2.44 | 3.00 | 0.97 | 0.22 | 5.06 | 0.69 | 0.38 | 1.00 | |
| (12.70) | （6.35） | （63.50） | （31.75） | （13.46） | （31.75） | (61.98) | （76.20） | （24.64） | （5.59） | （128.52） | （17.53） | （9.65） | （25.40） | ||
| 型号 | 管外径 | 通径 | 尺寸 英寸（毫米） | 阀体厚度 | |||||||||||
| Catalog Number | Outside Diameter Tube inch(mm) | Orifice Diameter inch(mm) | Dimensions inch(mm) | Block Thickness inch(mm) | |||||||||||
| A | B | C | D | D1 | E | F | G | G1 | H | M | N | ||||
| 三通针阀（一进口） Three-Way (One on pressure) | |||||||||||||||
| HT-10-VN-2074 | 1/8 | 0.094 | 1.50 | 0.75 | 0.31 | 0.81 | 1.56 | 3.00 | 0.62 | 0.17 | 3.94 | 0.50 | 0.31 | 0.62 | |
| (3.18) | (2.39) | (38.10) | (19.05) | (7.87) | (20.57) | (39.62) | (76.20) | (15.75) | (4.32) | (100.08) | (12.70) | (7.87) | (15.75) | ||
| HT-10-VN-4074 | 1/4 | 0.125 | 2.00 | 1.00 | 0.56 | 1.19 | 2.19 | 3.00 | 0.97 | 0.22 | 4.81 | 0.69 | 0.31 | 1.00 | |
| (6.35) | (3.18) | (50.80) | (25.40) | (14.22) | (30.23) | (55.63) | (76.20) | (24.64) | (5.59) | (122.17) | (17.53) | (7.87) | (24.40) | ||
| HT-10-VN-6074 | 3/8 | 0.125 | 2.00 | 1.00 | 0.56 | 1.19 | 2.19 | 3.00 | 0.97 | 0.22 | 4.81 | 0.69 | 0.31 | 1.00 | |
| (9.53) | (3.18) | (50.80) | (25.40) | (14.22) | （30.23） | (55.63) | （76.20） | （24.64） | （5.59） | (122.17) | （17.53） | (7.87) | （25.40） | ||
| HT-10-VN-8074 | 1/2 | 0.25 | 2.50 | 1.25 | 0.53 | 1.25 | 2.44 | 3.00 | 0.97 | 0.22 | 5.06 | 0.69 | 0.38 | 1.00 | |
| (12.70) | （6.35） | （63.50） | （31.75） | （13.46） | （31.75） | (61.98) | （76.20） | （24.64） | （5.59） | (128.52) | （17.53） | （9.65） | （25.40） | ||

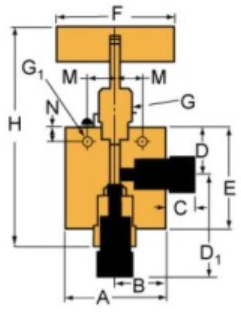

| 两位直角针阀(阀座可换） Two-Way Angle （Replaceable Seat） | |||||||||||||||
| HT-10-VN-2872 | 1/8 | 0.094 | 1.50 | 0.75 | 0.31 | 0.81 | 1.28 | 1.56 | 3.00 | 0.62 | 0.17 | 4.50 | 0.50 | 0.31 | 0.62 |
| (3.18) | (2.39) | (38.10) | (19.05) | (7.87) | (20.57) | (32.51) | (39.62) | (76.20) | (15.75) | (4.32) | (114.30) | (12.70) | (7.87) | (15.75) | |
| HT-10-VN-4872 | 1/4 | 0.125 | 2.00 | 1.00 | 0.56 | 1.12 | 2.13 | 2.25 | 3.00 | 0.97 | 0.22 | 6.00 | 0.69 | 0.38 | 1.00 |
| (6.35) | (3.18) | (50.80) | (25.40) | (14.22) | (28.45) | (54.10) | (57.15) | (76.20) | (24.64) | (5.59) | (152.40) | (17.53) | (9.65) | (24.40) | |
| HT-10-VN-6872 | 3/8 | 0.125 | 2.00 | 1.00 | 0.56 | 1.12 | 2.28 | 2.25 | 3.00 | 0.97 | 0.22 | 6.00 | 0.69 | 0.38 | 1.00 |
| (9.53) | (3.18) | (50.80) | (25.40) | (14.22) | (28.45) | (57.91) | (57.15) | （76.20） | （24.64） | （5.59） | (152.40) | （17.53） | （9.65） | （25.40） | |
| HT-10-VN-8872 | 1/2 | 0.25 | 2.50 | 1.25 | 0.53 | 1.00 | 2.50 | 2.38 | 3.00 | 0.97 | 0.28 | 6.06 | 0.69 | 0.38 | 1.00 |
| (12.70) | （6.35） | （63.50） | （31.75） | （13.46） | （25.40） | (63.50) | (60.45) | （76.20） | （24.64） | （7.11） | (153.92) | （17.53） | （9.65） | （25.40） | |

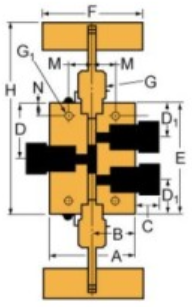

| 三通针阀（两头阀杆） Three-Way （Two-Stem Manifold） | |||||||||||||||
| HT-10-VN-2075 | 1/8 | 0.094 | 1.50 | 0.75 | 0.31 | 1.12 | 0.81 | 2.25 | 3.00 | 0.62 | 0.17 | 4.63 | 0.50 | 0.31 | 0.62 |
| (3.18) | (2.39) | (38.10) | (19.05) | (7.87) | (28.45) | (20.57) | (57.15) | (76.20) | (15.75) | (4.32) | (117.60) | (12.70) | (7.87) | (15.75) | |
| HT-10-VN-4075 | 1/4 | 0.125 | 2.00 | 1.00 | 0.56 | 1.69 | 1.09 | 3.38 | 3.00 | 0.97 | 0.22 | 5.82 | 0.69 | 0.38 | 1.00 |
| (6.35) | (3.18) | (50.80) | (25.40) | (14.22) | (42.93) | (27.69) | (85.85) | (76.20) | (24.64) | (5.59) | (147.83) | (17.53) | (9.65) | (24.40) | |
| HT-10-VN-6075 | 3/8 | 0.125 | 2.00 | 1.00 | 0.56 | 1.69 | 1.09 | 3.38 | 3.00 | 0.97 | 0.22 | 5.82 | 0.69 | 0.38 | 1.00 |
| (9.53) | (3.18) | (50.80) | (25.40) | (14.22) | (42.93) | (27.69) | (85.85) | （76.20） | （24.64） | （5.59） | (147.83) | （17.53） | （9.65） | （25.40） | |
| HT-10-VN-8075 | 1/2 | 0.25 | 2.50 | 1.25 | 0.53 | 1.69 | 1.03 | 3.38 | 3.00 | 0.97 | 0.22 | 5.82 | 0.69 | 0.38 | 1.00 |
| (12.70) | （6.35） | （63.50） | （31.75） | （13.46） | (42.93) | (26.16) | (85.85) | （76.20） | （24.64） | （5.59） | (147.83) | （17.53） | （9.65） | （25.40） | |
HT-20-VL系列
| 型号 | 管外径 | 通径 | 尺寸 英寸（毫米） | 阀体厚度 | |||||||||||
| Catalog Number | Outside Diameter Tube inch(mm) | Orifice Diameter inch(mm) | Dimensions inch(mm) | Block Thickness inch(mm) | |||||||||||
| A | B | C | D | D1 | E | F | G | G1 | H | M | N | ||||
| 两位直通针阀 Two-Way Straight | |||||||||||||||
| HT-20-VL-4071 | 1/4 | 0.125 | 2.00 | 1.00 | 0.38 | 1.19 | 1.62 | 2.00 | 3.00 | 0.75 | 0.22 | 4.69 | 0.62 | 0.38 | 0.75 |
| (6.35) | (3.18) | (50.80) | (25.40) | (9.65) | (30.23) | (41.15) | (50.80) | (76.20) | (19.05) | (5.59) | (119.13) | (15.75) | (9.65) | (19.05) | |
| HT-20-VL-6071 | 3/8 | 0.219 | 2.00 | 1.00 | 0.47 | 1.62 | 1.19 | 2.00 | 3.00 | 0.75 | 0.22 | 4.63 | 0.62 | 0.38 | 0.75 |
| (9.53) | (5.56) | (50.80) | (25.40) | (11.94) | (41.15) | (30.23) | (50.80) | (76.20) | (19.05) | (5.59) | (117.48) | (15.75) | (9.65) | (19.05) | |
| HT-20-VL-9071 | 9/16 | 0.312 | 2.50 | 1.25 | 0.53 | 2.38 | 1.75 | 2.88 | 4.00 | 1.00 | 0.34 | 5.93 | 0.69 | 0.50 | 1.00 |
| (14.29) | (7.92) | (63.50) | (31.75) | (13.46) | (60.45) | (44.45) | (73.15) | (101.60) | (25.40) | (8.64) | (150.86) | (17.53) | (12.70) | (25.40) | |
| HT-20-VL-12071 | 3/4 | 0.438 | 3.00 | 1.50 | 0.62 | 3.00 | 2.25 | 3.00 | 10.25 | 1.12 | 0.44 | 7.00 | 0.88 | 0.63 | 1.38 |
| (19.05) | (11.13) | (76.20) | (38.10) | (15.75) | (76.20) | (57.15) | (76.20) | (260.35) | (28.45) | (11.18) | (177.80) | (22.35) | (16.00) | (35.05) | |
| HT-20-VL-16071 | 1 | 0.562 | 4.12 | 2.06 | 0.63 | 3.75 | 2.81 | 4.63 | 10.25 | 1.62 | 0.56 | 9.00 | 1.25 | 1.13 | 1.75 |
| (25.40) | (14.27) | (104.65) | (52.32) | (16.00) | (95.25) | (71.37) | (117.60) | (260.35) | (41.15) | (14.22) | (228.84) | (31.75) | (28.70) | (44.45) | |
| HT-10-VL-9071 | 9/16 | 0.359 | 2.50 | 1.25 | 0.53 | 2.38 | 1.75 | 2.88 | 4.00 | 1.00 | 0.34 | 5.93 | 0.69 | 0.50 | 1.00 |
| (14.29) | (9.12) | (63.50) | (31.75) | (13.46) | (60.45) | (44.45) | (73.15) | (101.60) | (25.40) | (8.64) | (150.86) | (17.53) | (12.70) | (25.40) | |
| HT-10-VL-12071 | 3/4 | 0.516 | 3.00 | 1.50 | 0.62 | 3.00 | 2.25 | 3.00 | 10.25 | 1.12 | 0.44 | 7.00 | 0.88 | 0.63 | 1.38 |
| (19.05) | (13.11) | (76.20) | (38.10) | (15.75) | (76.20) | (57.15) | (76.20) | (260.35) | (28.45) | (11.18) | (177.80) | (22.35) | (16.00) | (35.05) | |
| HT-10-VL-16071 | 1 | 0.688 | 4.12 | 2.06 | 0.63 | 3.75 | 2.81 | 4.63 | 10.25 | 1.62 | 0.56 | 9.00 | 1.25 | 1.13 | 1.75 |
| (25.40) | (17.48) | (104.65) | (52.32) | (16.00) | (95.25) | (71.37) | (117.60) | (260.35) | (41.15) | (14.22) | (228.84) | (31.75) | (28.70) | (44.45) | |
| 两位直角针阀 Two-Way Angle | |||||||||||||||
| HT-20-VL-4072 | 1/4 | 0.125 | 2.00 | 1.00 | 0.38 | 1.19 | 2.44 | 3.00 | 0.75 | 0.22 | 4.81 | 0.62 | 0.38 | 0.75 | |
| (6.35) | (3.18) | (50.80) | (25.40) | (9.65) | (30.23) | (61.90) | (76.20) | (19.05) | (5.59) | (122.25) | (15.75) | (9.65) | (19.05) | ||
| HT-20-VL-6072 | 3/8 | 0.219 | 2.00 | 1.00 | 0.47 | 1.19 | 2.44 | 3.00 | 0.75 | 0.22 | 4.81 | 0.62 | 0.38 | 0.75 | |
| (9.53) | (5.56) | (50.80) | (25.40) | (11.94) | (30.23) | (61.90) | (76.20) | (19.05) | (5.59) | (122.25) | (15.75) | (9.65) | (19.05) | ||
| HT-20-VL-9072 | 9/16 | 0.312 | 2.50 | 1.25 | 0.53 | 1.75 | 3.38 | 4.00 | 1.00 | 0.34 | 6.43 | 0.69 | 0.50 | 1.00 | |
| (14.29) | (7.92) | (63.50) | (31.75) | (13.46) | (44.45) | (85.85) | (101.60) | (25.40) | (8.64) | (163.56) | (17.53) | (12.70) | (25.40) | ||
| HT-20-VL-12072 | 3/4 | 0.438 | 3.00 | 1.50 | 0.62 | 2.25 | 4.25 | 10.25 | 1.12 | 0.44 | 7.50 | 0.88 | 0.63 | 1.38 | |
| (19.05) | (11.13) | (76.20) | (38.10) | (15.75) | (57.15) | (107.95) | (260.35) | (28.45) | (11.18) | (190.50) | (22.35) | (16.00) | (35.05) | ||
| HT-20-VL-16072 | 1 | 0.562 | 4.12 | 2.06 | 0.63 | 2.81 | 5.12 | 10.25 | 1.62 | 0.56 | 9.00 | 1.25 | 1.13 | 1.75 | |
| (25.40) | (14.27) | (104.65) | (52.32) | (16.00) | (71.37) | (130.05) | (260.35) | (41.15) | (14.22) | (228.84) | (31.75) | (28.70) | (44.45) | ||
| HT-10-VL-9072 | 9/16 | 0.359 | 2.50 | 1.25 | 0.53 | 1.75 | 3.38 | 4.00 | 1.00 | 0.34 | 6.43 | 0.69 | 0.50 | 1.00 | |
| (14.29) | (9.12) | (63.50) | (31.75) | (13.46) | (44.45) | (85.85) | (101.60) | (25.40) | (8.64) | (163.56) | (17.53) | (12.70) | (25.40) | ||
| HT-10-VL-12072 | 3/4 | 0.516 | 3.00 | 1.50 | 0.62 | 2.25 | 4.25 | 10.25 | 1.12 | 0.44 | 7.50 | 0.88 | 0.63 | 1.38 | |
| (19.05) | (13.11) | (76.20) | (38.10) | (15.75) | (57.15) | (107.95) | (260.35) | (28.45) | (11.18) | (190.50) | (22.35) | (16.00) | (35.05) | ||
| HT-10-VL-16072 | 1 | 0.688 | 4.12 | 2.06 | 0.63 | 2.81 | 5.12 | 10.25 | 1.62 | 0.56 | 9.00 | 1.25 | 1.13 | 1.75 | |
| (25.40) | (17.48) | (104.65) | (52.32) | (16.00) | (71.37) | (130.05) | (260.35) | (41.15) | (14.22) | (228.84) | (31.75) | (28.70) | (44.45) | ||
| 三通针阀 （两进口） Three-Way （Two on pressure） | |||||||||||||||
| HT-20-VL-4073 | 1/4 | 0.125 | 2.00 | 1.00 | 0.38 | 1.63 | 1.19 | 2.63 | 3.00 | 0.75 | 0.22 | 5.00 | 0.62 | 0.38 | 0.75 |
| (6.35) | (3.18) | (50.80) | (25.40) | (9.65) | (41.28) | (30.23) | (66.68) | (76.20) | (19.05) | (5.59) | (127.00) | (15.75) | (9.65) | (19.05) | |
| HT-20-VL-6073 | 3/8 | 0.219 | 2.00 | 1.00 | 0.47 | 1.63 | 1.19 | 2.63 | 3.00 | 0.75 | 0.22 | 5.00 | 0.62 | 0.38 | 0.75 |
| (9.53) | (5.56) | (50.80) | (25.40) | (11.94) | (41.28) | (30.23) | (66.68) | (76.20) | (19.05) | (5.59) | (127.00) | (15.75) | (9.65) | (19.05) | |
| HT-20-VL-9073 | 9/16 | 0.312 | 2.50 | 1.25 | 0.53 | 2.38 | 1.75 | 3.63 | 4.00 | 1.00 | 0.34 | 6.51 | 0.69 | 0.50 | 1.00 |
| (14.29) | (7.92) | (63.50) | (31.75) | (13.46) | (60.45) | (44.45) | (92.08) | (101.60) | (25.40) | (8.64) | (165.59) | (17.53) | (12.70) | (25.40) | |
| HT-20-VL-12073 | 3/4 | 0.438 | 3.00 | 1.50 | 0.62 | 3.00 | 2.25 | 4.63 | 10.25 | 1.12 | 0.44 | 7.88 | 0.88 | 0.63 | 1.38 |
| (19.05) | (11.13) | (76.20) | (38.10) | (15.75) | (76.20) | (57.15) | (117.60) | (260.35) | (28.45) | (11.18) | (200.03) | (22.35) | (16.00) | (35.05) | |
| HT-20-VL-16073 | 1 | 0.562 | 4.12 | 2.06 | 0.63 | 3.75 | 2.81 | 5.88 | 10.25 | 1.62 | 0.56 | 9.75 | 1.25 | 1.13 | 1.75 |
| (25.40) | (14.27) | (104.65) | (52.32) | (16.00) | (95.25) | (71.37) | (149.35) | (260.35) | (41.15) | (14.22) | (247.89) | (31.75) | (28.70) | (44.45) | |
| HT-10-VL-9073 | 9/16 | 0.359 | 2.50 | 1.25 | 0.53 | 2.38 | 1.75 | 3.63 | 4.00 | 1.00 | 0.34 | 6.52 | 0.69 | 0.50 | 1.00 |
| (14.29) | (9.12) | (63.50) | (31.75) | (13.46) | (60.45) | (44.45) | (92.08) | (101.60) | (25.40) | (8.64) | (165.59) | (17.53) | (12.70) | (25.40) | |
| HT-10-VL-12073 | 3/4 | 0.516 | 3.00 | 1.50 | 0.62 | 3.00 | 2.25 | 4.63 | 10.25 | 1.12 | 0.44 | 7.88 | 0.88 | 0.63 | 1.38 |
| (19.05) | (13.11) | (76.20) | (38.10) | (15.75) | (76.20) | (57.15) | (117.60) | (260.35) | (28.45) | (11.18) | (200.03) | (22.35) | (16.00) | (35.05) | |
| HT-10-VL-16073 | 1 | 0.688 | 4.12 | 2.06 | 0.63 | 3.75 | 2.81 | 5.88 | 10.25 | 1.62 | 0.56 | 9.75 | 1.25 | 1.13 | 1.75 |
| (25.40) | (17.48) | (104.65) | (52.32) | (16.00) | (95.25) | (71.37) | (149.35) | (260.35) | (41.15) | (14.22) | (247.89) | (31.75) | (28.70) | (44.45) | |
| 型号 | 管外径 | 通径 | 尺寸 英寸（毫米） | 阀体厚度 | |||||||||||
| Catalog Number | Outside Diameter Tube inch(mm) | Orifice Diameter inch(mm) | Dimensions inch(mm) | Block Thickness inch(mm) | |||||||||||
| A | B | C | D | D1 | E | F | G | G1 | H | M | N | ||||
| 三通针阀（一进口） Three-Way （One on pressure） | |||||||||||||||
| HT-20-VL-4074 | 1/4 | 0.125 | 2.00 | 1.00 | 0.38 | 1.19 | 2.44 | 3.00 | 0.75 | 0.22 | 4.81 | 0.62 | 0.38 | 0.75 | |
| (6.35) | (3.18) | (50.80) | (25.40) | (9.65) | (30.23) | (61.90) | (76.20) | (19.05) | (5.59) | (122.25) | (15.75) | (9.65) | (19.05) | ||
| HT-20-VL-6074 | 3/8 | 0.219 | 2.00 | 1.00 | 0.47 | 1.19 | 2.44 | 3.00 | 0.75 | 0.22 | 4.81 | 0.62 | 0.38 | 0.75 | |
| (9.53) | (5.56) | (50.80) | (25.40) | (11.94) | (30.23) | (61.90) | (76.20) | (19.05) | (5.59) | (122.25) | (15.75) | (9.65) | (19.05) | ||
| HT-20-VL-9074 | 9/16 | 0.312 | 2.50 | 1.25 | 0.53 | 1.75 | 3.88 | 4.00 | 1.00 | 0.34 | 6.31 | 0.69 | 0.50 | 1.00 | |
| (14.29) | (7.92) | (63.50) | (31.75) | (13.46) | (44.45) | (85.85) | (101.60) | (25.40) | (8.64) | (160.56) | (17.53) | (12.70) | (25.40) | ||
| HT-20-VL-12074 | 3/4 | 0.438 | 3.00 | 1.50 | 0.62 | 2.25 | 4.25 | 10.25 | 1.12 | 0.44 | 7.50 | 0.88 | 0.63 | 1.38 | |
| (19.05) | (11.13) | (76.20) | (38.10) | (15.75) | (57.15) | (107.95) | (260.35) | (28.45) | (11.18) | (190.50) | (22.35) | (16.00) | (35.05) | ||
| HT-20-VL-16074 | 1 | 0.562 | 4.12 | 2.06 | 0.63 | 2.81 | 5.21 | 10.25 | 1.62 | 0.56 | 9.09 | 1.25 | 1.13 | 1.75 | |
| (25.40) | (14.27) | (104.65) | (52.32) | (16.00) | (71.37) | (132.33) | (260.35) | (41.15) | (14.22) | (231.13) | (31.75) | (28.70) | (44.45) | ||
| HT-10-VL-9074 | 9/16 | 0.359 | 2.50 | 1.25 | 0.53 | 1.75 | 3.38 | 4.00 | 1.00 | 0.34 | 6.13 | 0.69 | 0.50 | 1.00 | |
| (14.29) | (9.12) | (63.50) | (31.75) | (13.46) | (44.45) | (73.15) | (101.60) | (25.40) | (8.64) | (160.56) | (17.53) | (12.70) | (25.40) | ||
| HT-10-VL-12074 | 3/4 | 0.516 | 3.00 | 1.50 | 0.62 | 2.25 | 4.25 | 10.25 | 1.12 | 0.44 | 7.50 | 0.88 | 0.63 | 1.38 | |
| (19.05) | (13.11) | (76.20) | (38.10) | (15.75) | (57.15) | (107.95) | (260.35) | (28.45) | (11.18) | (190.50) | (22.35) | (16.00) | (35.05) | ||
| HT-10-VL-16074 | 1 | 0.688 | 4.12 | 2.06 | 0.63 | 2.81 | 5.21 | 10.25 | 1.62 | 0.56 | 9.09 | 1.25 | 1.13 | 1.75 | |
| (25.40) | (17.48) | (104.65) | (52.32) | (16.00) | (71.37) | (132.33) | (260.35) | (41.15) | (14.22) | (231.13) | (31.75) | (28.70) | (44.45) | ||
| 直角针阀（阀座可换） Two-Way Angle（Replaceable Seat） | |||||||||||||||
| HT-20-VL-4872 | 1/4 | 0.125 | 2.00 | 1.00 | 0.38 | 1.19 | 2.13 | 2.25 | 3.00 | 0.75 | 0.22 | 5.75 | 0.62 | 0.38 | 0.75 |
| (6.35) | (3.18) | (50.80) | (25.40) | (9.65) | (30.23) | (53.98) | (57.15) | (76.20) | (19.05) | (5.59) | (146.05) | (15.75) | (9.65) | (19.05) | |
| HT-20-VL-6872 | 3/8 | 0.219 | 2.00 | 1.00 | 0.47 | 1.19 | 2.13 | 2.25 | 3.00 | 0.75 | 0.22 | 5.75 | 0.62 | 0.38 | 0.75 |
| (9.53) | (5.56) | (50.80) | (25.40) | (11.94) | (30.23) | (53.98) | (57.15) | (76.20) | (19.05) | (5.59) | (146.05) | (15.75) | (9.65) | (19.05) | |
| HT-20-VL-9872 | 9/16 | 0.312 | 2.50 | 1.25 | 0.53 | 1.75 | 2.50 | 3.13 | 4.00 | 1.00 | 0.34 | 7.34 | 0.69 | 0.50 | 1.00 |
| (14.29) | (7.92) | (63.50) | (31.75) | (13.46) | (44.45) | (63.50) | (79.38) | (101.60) | (25.40) | (8.64) | (186.68) | (17.53) | (12.70) | (25.40) | |
| HT-20-VL-12872 | 3/4 | 0.438 | 3.00 | 1.50 | 0.62 | 2.25 | 3.44 | 4.25 | 10.25 | 1.12 | 0.44 | 9.00 | 0.88 | 0.63 | 1.38 |
| (19.05) | (11.13) | (76.20) | (38.10) | (15.75) | (57.15) | (87.38) | (107.95) | (260.35) | (28.45) | (11.18) | (228.84) | (22.35) | (16.00) | (35.05) | |
| HT-20-VL-16872 | 1 | 0.562 | 4.12 | 2.06 | 0.63 | 2.69 | 4.38 | 5.25 | 10.25 | 1.62 | 0.56 | 11.00 | 1.25 | 1.13 | 1.75 |
| (25.40) | (14.27) | (104.65) | (52.32) | (16.00) | (68.33) | (111.13) | (133.35) | (260.35) | (41.15) | (14.22) | (279.64) | (31.75) | (28.70) | (44.45) | |
| HT-10-VL-9872 | 9/16 | 0.359 | 2.50 | 1.25 | 0.53 | 1.75 | 2.50 | 3.38 | 4.00 | 1.00 | 0.34 | 7.34 | 0.69 | 0.50 | 1.00 |
| (14.29) | (9.12) | (63.50) | (31.75) | (13.46) | (44.45) | (63.50) | (85.85) | (101.60) | (25.40) | (8.64) | (186.68) | (17.53) | (12.70) | (25.40) | |
| HT-10-VL-12872 | 3/4 | 0.516 | 3.00 | 1.50 | 0.62 | 2.25 | 3.44 | 4.25 | 10.25 | 1.12 | 0.44 | 9.00 | 0.88 | 0.63 | 1.38 |
| (19.05) | (13.11) | (76.20) | (38.10) | (15.75) | (57.15) | (87.38) | (107.95) | (260.35) | (28.45) | (11.18) | (228.84) | (22.35) | (16.00) | (35.05) | |
| HT-10-VL-16872 | 1 | 0.688 | 4.12 | 2.06 | 0.63 | 2.69 | 4.38 | 5.25 | 10.25 | 1.62 | 0.56 | 11.00 | 1.25 | 1.13 | 1.75 |
| (25.40) | (17.48) | (104.65) | (52.32) | (16.00) | (68.33) | (111.13) | (133.35) | (260.35) | (41.15) | (14.22) | (279.64) | (31.75) | (28.70) | (44.45) | |
| 三通针阀 （两头阀杆） Three-Way （Two-Stem Mainfold） | |||||||||||||||
| HT-20-VL-4075 | 1/4 | 0.125 | 2.00 | 1.00 | 0.38 | 1.69 | 1.19 | 3.38 | 3.00 | 0.75 | 0.22 | 8.13 | 0.62 | 0.38 | 0.75 |
| (6.35) | (3.18) | (50.80) | (25.40) | (9.65) | (42.85) | (30.23) | (85.85) | (76.20) | (19.05) | (5.59) | (206.38) | (15.75) | (9.65) | (19.05) | |
| HT-20-VL-6075 | 3/8 | 0.219 | 2.00 | 1.00 | 0.47 | 1.69 | 1.19 | 3.38 | 3.00 | 0.75 | 0.22 | 8.13 | 0.62 | 0.38 | 0.75 |
| (9.53) | (5.56) | (50.80) | (25.40) | (11.94) | (42.85) | (30.23) | (85.85) | (76.20) | (19.05) | (5.59) | (206.38) | (15.75) | (9.65) | (19.05) | |
| HT-20-VL-9075 | 9/16 | 0.312 | 2.50 | 1.25 | 0.53 | 2.56 | 1.75 | 5.13 | 4.00 | 1.00 | 0.34 | 11.31 | 0.69 | 0.50 | 1.00 |
| (14.29) | (7.92) | (63.50) | (31.75) | (13.46) | (65.07) | (44.45) | (130.18) | (101.60) | (25.40) | (8.64) | (287.56) | (17.53) | (12.70) | (25.40) | |
| HT-20-VL-12075 | 3/4 | 0.438 | 3.00 | 1.50 | 0.62 | 3.25 | 2.25 | 6.50 | 10.25 | 1.12 | 0.44 | 13.00 | 0.88 | 0.63 | 1.38 |
| (19.05) | (11.13) | (76.20) | (38.10) | (15.75) | (82.55) | (57.15) | (165.10) | (260.35) | (28.45) | (11.18) | (330.20) | (22.35) | (16.00) | (35.05) | |
| HT-20-VL-16075 | 1 | 0.562 | 4.12 | 2.06 | 0.63 | 3.75 | 2.81 | 7.50 | 10.25 | 1.62 | 0.56 | 15.44 | 1.25 | 1.13 | 1.75 |
| (25.40) | (14.27) | (104.65) | (52.32) | (16.00) | (95.25) | (71.37) | (190.50) | (260.35) | (41.15) | (14.22) | (392.42) | (31.75) | (28.70) | (44.45) | |
| HT-10-VL-9075 | 9/16 | 0.359 | 2.50 | 1.25 | 0.53 | 2.56 | 1.75 | 5.13 | 4.00 | 1.00 | 0.34 | 11.31 | 0.69 | 0.50 | 1.00 |
| (14.29) | (9.12) | (63.50) | (31.75) | (13.46) | (65.07) | (44.45) | (130.18) | (101.60) | (25.40) | (8.64) | (287.56) | (17.53) | (12.70) | (25.40) | |
| HT-10-VL-12075 | 3/4 | 0.516 | 3.00 | 1.50 | 0.62 | 3.25 | 2.25 | 6.50 | 10.25 | 1.12 | 0.44 | 13.00 | 0.88 | 0.63 | 1.38 |
| (19.05) | (13.11) | (76.20) | (38.10) | (15.75) | (82.55) | (57.15) | (165.10) | (260.35) | (28.45) | (11.18) | (330.20) | (22.35) | (16.00) | (35.05) | |
| HT-10-VL-16075 | 1 | 0.688 | 4.12 | 2.06 | 0.63 | 3.75 | 2.81 | 7.50 | 10.25 | 1.62 | 0.56 | 15.44 | 1.25 | 1.13 | 1.75 |
| (25.40) | (17.48) | (104.65) | (52.32) | (16.00) | (95.25) | (71.37) | (190.50) | (260.35) | (41.15) | (14.22) | (392.42) | (31.75) | (28.70) | (44.45) | |
HT-30-VH
| 型号 | 管外径 | 通径 | 尺寸 英寸（毫米） | 阀体厚度 | |||||||||||
| Catalog Number | Outside Diameter Tube inch(mm) | Orifice Diameter inch(mm) | Dimensions inch(mm) | Block Thickness inch(mm) | |||||||||||
| A | B | C | D | D1 | E | F | G | G1 | H | M | N | ||||
| 两位直通针阀 Two-Way Straight | |||||||||||||||
| HT-30-VH-4071 | 1/4 | 0.094 | 2.00 | 1.00 | 0.50 | 1.50 | 1.12 | 2.00 | 3.00 | 1.00 | 0.22 | 4.62 | 0.69 | 0.38 | 1.00 |
| (6.35) | (2.39) | (50.80) | (25.40) | (12.70) | (38.10) | (28.45) | (50.80) | (76.20) | (25.40) | (5.59) | (117.35) | (17.53) | (9.65) | (25.40) | |
| HT-30-VH-6071 | 3/8 | 0.125 | 2.00 | 1.00 | 0.53 | 1.50 | 1.12 | 2.00 | 3.00 | 1.00 | 0.22 | 4.68 | 0.69 | 0.38 | 1.00 |
| (9.53) | (3.18) | (50.80) | (25.40) | (13.46) | (38.10) | (28.45) | (50.80) | (76.20) | (25.40) | (5.59) | (118.87) | (17.53) | (9.65) | (25.40) | |
| HT-30-VH-9071 | 9/16 | 0.125 | 2.62 | 1.31 | 0.81 | 1.56 | 1.12 | 2.44 | 3.00 | 1.00 | 0.28 | 5.06 | 0.69 | 0.38 | 1.00 |
| (14.29) | (3.18) | (66.55) | (33.27) | (20.57) | (39.62) | (28.45) | (61.98) | (76.20) | (25.40) | (7.11) | (128.52) | (17.53) | (9.65) | (25.40) | |
| 两位直角针阀 Two-Way Angle | |||||||||||||||
| HT-30-VH-4072 | 1/4 | 0.094 | 2.00 | 1.00 | 0.50 | 1.12 | 2.00 | 3.00 | 1.00 | 0.22 | 4.62 | 0.69 | 0.38 | 1.00 | |
| (6.35) | (2.39) | (50.80) | (25.40) | (12.70) | (28.45) | (50.80) | (76.20) | (25.40) | (5.59) | (117.35) | (17.53) | (9.65) | (25.40) | ||
| HT-30-VH-6072 | 3/8 | 0.125 | 2.00 | 1.00 | 0.53 | 1.12 | 2.12 | 3.00 | 1.00 | 0.22 | 4.74 | 0.69 | 0.38 | 1.00 | |
| (9.53) | (3.18) | (50.80) | (25.40) | (13.46) | (28.45) | (53.85) | (76.20) | (25.40) | (5.59) | (120.40) | (17.53) | (9.65) | (25.40) | ||
| HT-30-VH-9072 | 9/16 | 0.125 | 2.62 | 1.31 | 0.81 | 1.12 | 2.44 | 3.00 | 1.00 | 0.28 | 5.06 | 0.69 | 0.38 | 1.50 | |
| (14.29) | (3.18) | (66.55) | (33.27) | (20.57) | (28.45) | (61.98) | (76.20) | (25.40) | (7.11) | (128.52) | (17.53) | (9.65) | (38.10) | ||
| 三通针阀（两进口） Three-Way （Two on pressure） | |||||||||||||||
| HT-30-VH-4073 | 1/4 | 0.094 | 2.00 | 1.00 | 0.50 | 1.50 | 1.12 | 2.12 | 3.00 | 1.00 | 0.22 | 4.74 | 0.69 | 0.38 | 1.00 |
| (6.35) | (2.39) | (50.80) | (25.40) | (12.70) | (38.10) | (28.45) | (53.85) | (76.20) | (25.40) | (5.59) | (120.40) | (17.53) | (9.65) | (25.40) | |
| HT-30-VH-6073 | 3/8 | 0.125 | 2.00 | 1.00 | 0.53 | 1.50 | 1.12 | 2.50 | 3.00 | 1.00 | 0.22 | 5.12 | 0.69 | 0.38 | 1.00 |
| (9.53) | (3.18) | (50.80) | (25.40) | (13.46) | (38.10) | (28.45) | (63.50) | (76.20) | (25.40) | (5.59) | (130.05) | (17.53) | (9.65) | (25.40) | |
| HT-30-VH-9073 | 9/16 | 0.125 | 2.62 | 1.31 | 0.81 | 1.56 | 1.12 | 2.88 | 3.00 | 1.00 | 0.28 | 5.49 | 0.69 | 0.38 | 1.50 |
| (14.29) | (3.18) | (66.55) | (33.27) | (20.57) | (39.62) | (28.45) | (61.98) | (76.20) | (25.40) | (7.11) | (139.45) | (17.53) | (9.65) | (38.10) | |
| 型号 | 管外径 | 通径 | 尺寸 英寸（毫米） | 阀体厚度 | |||||||||||
| Catalog Number | Outside Diameter Tube inch(mm) | Orifice Diameter inch(mm) | Dimensions inch(mm) | Block Thickness inch(mm) | |||||||||||
| A | B | C | D | D1 | E | F | G | G1 | H | M | N | ||||
| 三通针阀（一进口） Three-Way （One on pressure） | |||||||||||||||
| HT-30-VH-4074 | 1/4 | 0.094 | 2.00 | 1.00 | 0.50 | 1.12 | 2.00 | 3.00 | 1.00 | 0.22 | 4.62 | 0.69 | 0.38 | 1.00 | |
| (6.35) | (2.39) | (50.80) | (25.40) | (12.70) | (28.45) | (50.80) | (76.20) | (25.40) | (5.59) | (117.35) | (17.53) | (9.65) | (25.40) | ||
| HT-30-VH-6074 | 3/8 | 0.125 | 2.00 | 1.00 | 0.53 | 1.12 | 2.12 | 3.00 | 1.00 | 0.22 | 4.74 | 0.69 | 0.38 | 1.00 | |
| (9.53) | (3.18) | (50.80) | (25.40) | (13.46) | (28.45) | (53.85) | (76.20) | (25.40) | (5.59) | (120.40) | (17.53) | (9.65) | (25.40) | ||
| HT-30-VH-9074 | 9/16 | 0.125 | 2.62 | 1.31 | 0.81 | 1.12 | 2.44 | 3.00 | 1.00 | 0.28 | 5.12 | 0.69 | 0.38 | 1.50 | |
| (14.29) | (3.18) | (66.55) | (33.27) | (20.57) | (28.45) | (61.98) | (76.20) | (25.40) | (7.11) | (130.05) | (17.53) | (9.65) | (38.10) | ||
| 直角针阀（阀座可换） Two-Way （Replaceable Seat） | |||||||||||||||
| HT-30-VH-4872 | 1/4 | 0.094 | 2.00 | 1.00 | 0.50 | 1.12 | 2.06 | 2.38 | 3.00 | 1.00 | 0.22 | 5.80 | 0.69 | 0.38 | 1.00 |
| (6.35) | (2.39) | (50.80) | (25.40) | (12.70) | (28.45) | (52.32) | (60.45) | (76.20) | (25.40) | (5.59) | (147.32) | (17.53) | (9.65) | (25.40) | |
| HT-30-VH-6872 | 3/8 | 0.125 | 2.00 | 1.00 | 0.53 | 1.12 | 2.31 | 2.38 | 3.00 | 1.00 | 0.22 | 6.05 | 0.69 | 0.38 | 1.00 |
| (9.53) | (3.18) | (50.80) | (25.40) | (13.46) | (28.45) | (58.67) | (60.45) | (76.20) | (25.40) | (5.59) | (153.67) | (17.53) | (9.65) | (25.40) | |
| HT-30-VH-9872 | 9/16 | 0.125 | 2.62 | 1.31 | 0.81 | 1.19 | 2.62 | 2.44 | 3.00 | 1.00 | 0.28 | 6.45 | 0.69 | 0.38 | 1.50 |
| (14.29) | (3.18) | (66.55) | (33.27) | (20.57) | (30.23) | (66.55) | (61.98) | (76.20) | (25.40) | (7.11) | (163.83) | (17.53) | (9.65) | (38.10) | |
| 三通针阀（两进口） Three-Way （Two on pressure） | |||||||||||||||
| HT-30-VH-4075 | 1/4 | 0.094 | 2.00 | 1.00 | 0.50 | 1.53 | 1.12 | 3.06 | 3.00 | 1.00 | 0.22 | 5.68 | 0.69 | 0.38 | 1.00 |
| (6.35) | (2.39) | (50.80) | (25.40) | (12.70) | (38.86) | (28.45) | (77.72) | (76.20) | (25.40) | (5.59) | (144.27) | (17.53) | (9.65) | (25.40) | |
| HT-30-VH-6075 | 3/8 | 0.125 | 2.00 | 1.00 | 0.53 | 1.62 | 1.12 | 3.25 | 3.00 | 1.00 | 0.22 | 5.87 | 0.69 | 0.38 | 1.00 |
| (9.53) | (3.18) | (50.80) | (25.40) | (13.46) | (41.15) | (28.45) | (82.55) | (76.20) | (25.40) | (5.59) | (149.10) | (17.53) | (9.65) | (25.40) | |
| HT-30-VH-9075 | 9/16 | 0.125 | 2.62 | 1.31 | 0.81 | 1.88 | 1.12 | 3.75 | 3.00 | 1.00 | 0.28 | 6.37 | 0.69 | 0.38 | 1.50 |
| (14.29) | (3.18) | (66.55) | (33.27) | (20.57) | (47.75) | (28.45) | (95.25) | (76.20) | (25.40) | (7.11) | (161.80) | (17.53) | (9.65) | (38.10) | |
HT-40-VH
| 型号 | 管外径 | 通径 | 尺寸 英寸（毫米） | 阀体厚度 | |||||||||||
| Catalog Number | Outside Diameter Tube inch(mm) | Orifice Diameter inch(mm) | Dimensions inch(mm) | Block Thickness inch（mm） | |||||||||||
| A | B | C | D | D1 | E | F | G | G1 | H | M | N | ||||
| 两位直通针阀 Two-Way Straight | |||||||||||||||
| HT-40-VH-9071 | 9/16 | 0.109 | 2.62 | 1.31 | 0.72 | 1.31 | 1.12 | 2.50 | 3.00 | 1.00 | 0.28 | 5.06 | 0.69 | 0.38 | 1.50 |
| (14.29) | (2.77) | (66.55) | (33.27) | (18.29) | (33.27) | (28.45) | (63.50) | (76.20) | (25.40) | (7.11) | (128.52) | (17.53) | (9.65) | (38.10) | |
| 两位直角针阀 Two-Way Angle | |||||||||||||||
| HT-40-VH-9072 | 9/16 | 0.109 | 2.62 | 1.31 | 0.72 | 2.81 | 3.00 | 1.00 | 0.28 | 5.37 | 0.69 | 0.38 | 1.50 | ||
| (14.29) | (2.77) | (66.55) | (33.27) | (18.29) | (71.37) | (76.20) | (25.40) | (7.11) | (136.40) | (17.53) | (9.65) | (38.10) | |||
| 三通针阀（两进口） Three-Way （Two on pressure） | |||||||||||||||
| HT-40-VH-9075 | 9/16 | 0.109 | 2.62 | 1.31 | 0.72 | 1.31 | 1.12 | 4.12 | 3.00 | 1.00 | 0.28 | 9.12 | 0.69 | 0.38 | 1.50 |
| (14.29) | (2.77) | (66.55) | (33.27) | (18.29) | (33.27) | (28.45) | (104.65) | (76.20) | (25.40) | (7.11) | (139.45) | (231.65) | (9.65) | (38.10) | |
HT-60-VH
| 型号 | 管外径 | 通径 | 尺寸 英寸（毫米） | 阀体厚度 | |||||||||||
| Catalog Number | Outside Diameter Tube inch(mm) | Orifice Diameter inch(mm) | Dimensions inch(mm) | Block Thickness inch(mm) | |||||||||||
| A | B | C | D | D1 | E | F | G | G1 | H | M | N | ||||
| 两位直通针阀 Two-Way Straight | |||||||||||||||
| HT-60-VH-4071 | 1/4 | 0.062 | 2.00 | 1.00 | 0.50 | 1.69 | 1.31 | 2.12 | 3.00 | 1.00 | 0.22 | 4.75 | 0.69 | 0.38 | 1.00 |
| (6.35) | (1.57) | (50.80) | (25.40) | (12.70) | (42.93) | (33.27) | (53.85) | (76.20) | (25.40) | (5.59) | (120.65) | (17.53) | (9.65) | (25.40) | |
| HT-60-VH-6071 | 3/8 | 0.062 | 2.00 | 1.00 | 0.53 | 1.69 | 1.31 | 2.25 | 3.00 | 1.00 | 0.22 | 4.87 | 0.69 | 0.38 | 1.00 |
| (9.53) | (1.57) | (50.80) | (25.40) | (13.46) | (42.93) | (33.27) | (57.15) | (76.20) | (25.40) | (5.59) | (123.70) | (17.53) | (9.65) | (25.40) | |
| HT-60-VH-9071 | 9/16 | 0.078 | 2.62 | 1.31 | 0.72 | 1.75 | 1.31 | 2.50 | 3.00 | 1.00 | 0.28 | 5.13 | 0.69 | 0.38 | 1.50 |
| (14.29) | (1.98) | (66.55) | (33.27) | (18.29) | (45.45) | (33.27) | (63.50) | (76.20) | (25.40) | (7.11) | (130.30) | (17.53) | (9.65) | (38.10) | |
| 两位直角针阀 Two-Way Angle | |||||||||||||||
| HT-60-VH-4072 | 1/4 | 0.062 | 2.00 | 1.00 | 0.50 | 1.31 | 2.38 | 3.00 | 1.00 | 0.22 | 5.00 | 0.69 | 0.38 | 1.00 | |
| (6.35) | (1.57) | (50.80) | (25.40) | (12.70) | (33.27) | (60.45) | (76.20) | (25.40) | (5.59) | (127.00) | (17.53) | (9.65) | (25.40) | ||
| HT-60-VH-6072 | 3/8 | 0.062 | 2.00 | 1.00 | 0.53 | 1.31 | 2.62 | 3.00 | 1.00 | 0.22 | 5.25 | 0.69 | 0.38 | 1.00 | |
| (9.53) | (1.57) | (50.80) | (25.40) | (13.46) | (33.27) | (66.55) | (76.20) | (25.40) | (5.59) | (133.35) | (17.53) | (9.65) | (25.40) | ||
| HT-60-VH-9072 | 9/16 | 0.078 | 2.62 | 1.31 | 0.72 | 1.31 | 2.81 | 3.00 | 1.00 | 0.28 | 5.44 | 0.69 | 0.38 | 1.50 | |
| (14.29) | (1.98) | (66.55) | (33.27) | (18.29) | (33.27) | (71.37) | (76.20) | (25.40) | (7.11) | (138.18) | (17.53) | (9.65) | (38.10) | ||
| 三通针阀（两进口） Three-Way （Two on pressure） | |||||||||||||||
| HT-60-VH-4073 | 1/4 | 0.062 | 2.00 | 1.00 | 0.50 | 1.69 | 1.31 | 2.12 | 3.00 | 1.00 | 0.22 | 4.75 | 0.69 | 0.38 | 1.00 |
| (6.35) | (1.57) | (50.80) | (25.40) | (12.70) | (42.93) | (33.27) | (53.85) | (76.20) | (25.40) | (5.59) | (120.65) | (17.53) | (9.65) | (25.40) | |
| HT-60-VH-6073 | 3/8 | 0.062 | 2.00 | 1.00 | 0.53 | 1.69 | 1.31 | 2.25 | 3.00 | 1.00 | 0.22 | 4.87 | 0.69 | 0.38 | 1.00 |
| (9.53) | (1.57) | (50.80) | (25.40) | (13.46) | (42.93) | (33.27) | (57.15) | (76.20) | (25.40) | (5.59) | (123.70) | (17.53) | (9.65) | (25.40) | |
| HT-60-VH-9073 | 9/16 | 0.078 | 2.62 | 1.31 | 0.72 | 1.75 | 1.31 | 2.50 | 3.00 | 1.00 | 0.28 | 5.13 | 0.69 | 0.38 | 1.50 |
| (14.29) | (1.98) | (66.55) | (33.27) | (18.29) | (45.45) | (33.27) | (63.50) | (76.20) | (25.40) | (7.11) | (130.30) | (17.53) | (9.65) | (38.10) | |
| 型号 | 管外径 | 通径 | 尺寸 英寸（毫米） | 阀体厚度 | |||||||||||
| Catalog Number | Outside Diameter Tube inch(mm) | Orifice Diameter inch(mm) | Dimensions inch(mm) | Block Thickness inch(mm) | |||||||||||
| A | B | C | D | D1 | E | F | G | G1 | H | M | N | ||||
| 三通针阀（一进口） Two-Way Straight | |||||||||||||||
| HT-60-VH-4074 | 1/4 | 0.062 | 2.00 | 1.00 | 0.50 | 1.31 | 2.38 | 3.00 | 1.00 | 0.22 | 5.00 | 0.69 | 0.38 | 1.00 | |
| (6.35) | (1.57) | (50.80) | (25.40) | (12.70) | (33.27) | (60.45) | (76.20) | (25.40) | (5.59) | (127.00) | (17.53) | (9.65) | (25.40) | ||
| HT-60-VH-6074 | 3/8 | 0.062 | 2.00 | 1.00 | 0.53 | 1.31 | 2.62 | 3.00 | 1.00 | 0.22 | 5.25 | 0.69 | 0.38 | 1.00 | |
| (9.53) | (1.57) | (50.80) | (25.40) | (13.46) | (33.27) | (66.55) | (76.20) | (25.40) | (5.59) | (133.35) | (17.53) | (9.65) | (25.40) | ||
| HT-60-VH-9074 | 9/16 | 0.078 | 2.62 | 1.31 | 0.72 | 1.31 | 2.81 | 3.00 | 1.00 | 0.28 | 5.44 | 0.69 | 0.38 | 1.50 | |
| (14.29) | (1.98) | (66.55) | (33.27) | (18.29) | (33.27) | (71.37) | (76.20) | (25.40) | (7.11) | (138.18) | (17.53) | (9.65) | (38.10) | ||
| 直角针阀（阀座可换） Two-Way （Replaceable Seat） | |||||||||||||||
| HT-60-VH-4872 | 1/4 | 0.062 | 2.00 | 1.00 | 0.50 | 1.31 | 2.12 | 2.62 | 3.00 | 1.00 | 0.22 | 6.28 | 0.69 | 0.38 | 1.00 |
| (6.35) | (1.57) | (50.80) | (25.40) | (12.70) | (33.27) | (53.85) | (66.55) | (76.20) | (25.40) | (5.59) | (159.51) | (17.53) | (9.65) | (25.40) | |
| HT-60-VH-6872 | 3/8 | 0.062 | 2.00 | 1.00 | 0.53 | 1.31 | 2.36 | 2.62 | 3.00 | 1.00 | 0.22 | 6.52 | 0.69 | 0.38 | 1.00 |
| (9.53) | (1.57) | (50.80) | (25.40) | (13.46) | (33.27) | (59.94) | (66.55) | (76.20) | (25.40) | (5.59) | (165.60) | (17.53) | (9.65) | (25.40) | |
| HT-60-VH-9872 | 9/16 | 0.078 | 2.62 | 1.31 | 0.72 | 1.31 | 2.68 | 2.62 | 3.00 | 1.00 | 0.28 | 6.90 | 0.69 | 0.38 | 1.50 |
| (14.29) | (1.98) | (66.55) | (33.27) | (18.29) | (33.27) | (68.07) | (66.55) | (76.20) | (25.40) | (7.11) | (175.26) | (17.53) | (9.65) | (38.10) | |
| 三通针阀（两头阀杆） Three-Way （Two-Steam Manifold） | |||||||||||||||
| HT-60-VH-4075 | 1/4 | 0.062 | 2.00 | 1.00 | 0.50 | 1.72 | 1.31 | 3.44 | 3.00 | 1.00 | 0.22 | 6.07 | 0.69 | 0.38 | 1.00 |
| (6.35) | (1.57) | (50.80) | (25.40) | (12.70) | (43.69) | (33.27) | (87.38) | (76.20) | (25.40) | (5.59) | (154.18) | (17.53) | (9.65) | (25.40) | |
| HT-60-VH-6075 | 3/8 | 0.062 | 2.00 | 1.00 | 0.53 | 1.88 | 1.31 | 3.75 | 3.00 | 1.00 | 0.22 | 6.37 | 0.69 | 0.38 | 1.00 |
| (9.53) | (1.57) | (50.80) | (25.40) | (13.46) | (47.75) | (33.27) | (95.25) | (76.20) | (25.40) | (5.59) | (161.80) | (17.53) | (9.65) | (25.40) | |
| HT-60-VH-9075 | 9/16 | 0.078 | 2.62 | 1.31 | 0.72 | 2.06 | 1.31 | 4.12 | 3.00 | 1.00 | 0.28 | 6.37 | 0.69 | 0.38 | 1.50 |
| (14.29) | (1.98) | (66.55) | (33.27) | (18.29) | (52.32) | (33.27) | (104.65) | (76.20) | (25.40) | (7.11) | (161.80) | (17.53) | (9.65) | (38.10) | |
