高压泵

IM系列 ASL系列 IGSF系列 1.5Hp/2Hp/3Hp 气驱气泵氢气专用泵空气放大器系列冷媒加注泵系列

高压阀件

针阀气控阀安全阀单向阀过滤器

高压连接件

弯通三通四通堵头附件快接母接头转母接头母接头转公接头公接头转公接头 NPT连接软管连接

硬管和手动泵

硬管手动泵

Pump Catalog Numbering System

IHT泵需要压缩空气驱动即可产生压力。泵可以连接到现场现有的压缩空气管道系统即可，不需要连接电源就可以产生压力。采用压缩空气驱动的优点：

通过手动压力控制阀或气控阀即可调节压力
由空气驱动，特别适用于防爆应用领域由空气驱动，特别适用于防爆应用领域
能够达到预设定的最终压力
自动由泵进行补压
长期保压而不消耗能量
保压时介质不会产生过热现象
便于安装、维护成本低、只需连接气源、入口管线及压力管线即可
运行可靠、维护成本低、运行时噪音小

IM 系列		IM系列可以提供高达3gpm（12L / min）的输出流量。降噪修改可用于对噪声有严格要求的行业应用。所有型号均在25至125 psi（1.8至9 bar）的空气驱动压力下运行，并且手动泵选件可用于要求精确控制或没有空气驱动的应用。 IM系列共有7种，压力比为5：1至220：1。
ASL 系列		ASL系列每个安装支架都有3/8“螺栓的英寸（2）x13 / 32”（10.32）插槽。底部入口泵头和侧面嵌入式泵头是可拆的。 ASL系列提供压力比为11：1至796：1。
IAGT 系列		IAGT系列所有型号的气压驱动压力在40pa至3500pa之间。入口压力达100 psi，出口压力高达25000 psi。 AGT系列共有9种，压力比为60：1。
IAAD 系列		IAAD系列所有型号的气压驱动压力在40至150 psi（2.8至10.3 bar）之间。入口压力从100 psi到1250 psi（6.9 bar到86.2 bar），出口压力高达1250 psi（86.2 bar）。单回路流量：0.316L。AAD系列中共有2种，压力比为2：1和5：1。
冷媒加注泵系列		冷媒增压机主要应用新型环保制冷剂, 液态气体（如 co2 、sf6、氟里昴、氟龙）的回收与灌注。气体驱动安全、防爆，气体增压泵的驱动气体与被压缩气体完全分开，对压缩气体无污。
IAG 系列		IAG系列共有3种，压力比为30：1和60：1和75：1。

高压阀件

阀门型号
Valve Seriers	Valve Type	Connector Type	Outside Diameter Tube Size	Stem/seat type	Body Pattern	Options
10=10,000PSI	V=needle	A=AF	1=1/16"	07=non-rotating Veestem (on-off service)	1=2-way Straight	HT:High Temperature
15=15,000PSI	B=Ball Valve	N=NPT	2=1/8"	08=non-rotating regulating stem (tapered tip for regulating and shutoff)	2=2-Way Angle	N/O: Normally Open
20=20,000PSI	E=Elbow	L=Medium	4=1/4"	87=Vee stem with Replacedable seat	3=3-Way/2 on Pressure	N/C: Normally Closed
30=30,000PSI	T=Tee	H=High	5=5/16"	88=Regulating stem with replaceable seat	4=3-Way/1 on pressure	MINI-NO
40=40,000PSI	C=Cross		6=3/8"		5=2-way Angle/Replaceable Seat	MINI-NC
60=15,000PSI	K=Check		8=1/2"		6=3-way/2-stem	MPO-NO: Medium Duty Operator Normally Open
100=100,000PSI	F=Filter		9=9/16"			MPO-NC: Medium Duty Operator Normally Closed
150=150,000PSI	S=Straight Coupling		12=3/4"			HPO-NO:Heavy Duty Piston Operator Normally Open
	Plug		16=1"			HPO-NC:Heavy Duty Piston Operator Normally Closed
	G=Gland, Col or Sleeve

参考压力可能无法反映实际压力等级，实际压力等级还请参考适用目录页，或咨询厂商，十分感谢。

一般型号示例：
HT-60-TH-4 = 60000 psi三通，用于1/4“外径管道。
HT-15-EA-2 = 15000 psi，用于外径为1/8”的管道、锥形密封接头。
HT-30-VH-6071-HT = 30000 psi直通阀，适用于外径为3/8”的高温管，阀杆延伸。
“HTCO”HT-10-VN-4072-N/C = 10000 psi角阀，用于1/4“NPT管道，带“HTCO”空气操作器，常闭。
“HTPO”HT-15-VA-4072-N/C = 10000 psi角阀，用于1/4“锥形密封，带“HTPO”活塞操作机构，常闭。

高压连接件

接头型号
Pressure Series	Connection(s) Size and Type
Pressure Series	Female	Male
10=10000PSI	AF1	AM1	1/16" Taper Seal
15=15000PSI	AF2	AM2	1/8"Taper Seal
20=20000PSI	AF4	AM4	1/8"Taper Seal
30=30000PSI	AF6	AM6	3/8"Taper Seal
60=60000PSI	LF4	LM4	1/4"Medium Pressure
100=100000PSI	LF6	LM6	3/8"Medium Pressure
150=150000PSI	LF9	LM9	9/16"Medium Pressure
	LF12	LM12	3/4"Medium Pressure
	LF16	LM16	1"Medium Pressure
	HF2	HM2	1/8"High Pressure
	HF4	HM4	1/4"High Pressure
	HF6	HM6	3/8"High Pressure
	HF9	HM9	9/16"High Pressure
	HF16	HM16	1"High Pressure
	XF4	XM4	1/4"Ultra High Pressure
	XF6	XM6	3/8"Ultra High Pressure
	NFA	NMA	1/8"NPT Pipe
	NFB	NMB	1/4"NPT Pipe
	NFC	NMC	3/8"NPT Pipe
	NFD	NMD	1/2"NPT Pipe
	NFF	NMF	3/4"NPT Pipe
	NFH	NMH	1"NPT Pipe
		HA9	9/16"Hose
		HA12	3/4"Hose
		HA16	1"Hose
		HA21	1 5/16"Hose
			DKOS-Metric Male
			12 - Male 120° cone

硬管和手动泵

IHT硬管，主要用于油气、氢能、液压和水清洗行业，适用于液体和气体介质。

所有的过渡接头和硬管都采用V4A不锈钢材质冷成型，以适应该行业对高温及高压的特殊要求。

硬管的工作压力为690-4,140 bar，适用于多种螺纹形式。

标准的螺纹形式包括：

- JIC

- NPT

- Medium Pressure (MP) 中压

- High Pressure (HP) 高压

- Type M

- Sealing cones (metric & inch) 密封锥度（公制或英制）

连接形式：

外螺纹 x 外螺纹

内螺纹 x 内螺纹

内螺纹 x 外螺纹

公接头转公接头

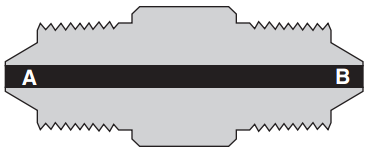

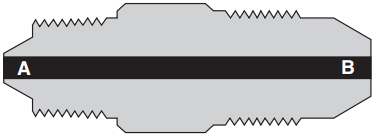

卡套公接头转卡套公接头 Male Taper Seal to Male Taper Seal
型号	压力等级	连接	A	B	长度	六角尺寸
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
15-AM1AM1	15000	1/16" T.S. to 1/16"T.S.	AM1	AM1	1-3/8"	1/2"
15-AM2AM2	15000	1/8" T.S. to 1/8"T.S.	AM2	AM2	1-5/8"	5/8"
10-AM2AM4	10000	1/8" T.S. to 1/4"T.S.	AM2	AM4	1-7/8"	7/8"
10-AM4AM4	10000	1/4" T.S. to 1/4"T.S.	AM4	AM4	2-1/8"	7/8"
10-AM4AM6	10000	1/4" T.S. to 3/8"T.S.	AM4	AM6	2-1/8"	3/4"
10-AM6AM6	10000	3/8" T.S. to 3/8"T.S.	AM6	AM6	2-1/8"	3/4"

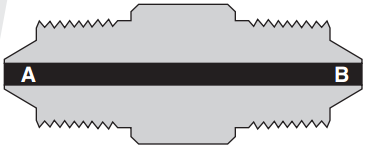

卡套公接头转中压公接头 Male Taper Seal to Male Medium Pressure
型号	压力等级	连接	A	B	长度	六角尺寸
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
10-AM4LM4	10000	1/4" T.S. to 1/4" M.P.	AM4	LM4	2-1/8"	7/8"
10-AM4LM6	10000	1/4" T.S. to 3/8" M.P.	AM4	LM6	2-3/16"	7/8"
10-AM4LM9	10000	1/4" T.S. to 9/16" M.P.	AM4	LM9	2-3/8"	8/8"
10-AM6LM4	10000	3/8" T.S. to 1/4" M.P.	AM6	LM4	2-1/8"	7/8"
10-AM6LM6	10000	3/8" T.S. to 3/8" M.P.	AM6	LM6	2-3/16"	8/8"
10-AM6LM9	10000	3/8" T.S. to 9/16" M.P.	AM6	LM9	2-3/8"	7/8"
15-AM2LM4	15000	1/8"T.S. to 1/4"M.P.	AM2	LM4	1-7/8"	1/2"
15-AM2LM6	15000	1/8" T.S. to 3/8" M.P.	AM2	LM6	2"	5/8"
15-AM2LM9	15000	1/8" T.S. to 9/16" M.P.	AM2	LM9	2-1/8"	7/8"

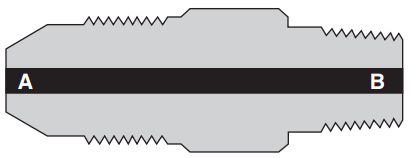

卡套公接头转管公接头 Male Taper Seal to Male Pipe
型号	压力等级	连接	A	B	长度	六角尺寸
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
15-AM1NMA	15000	1/16" T.S. to 1/8"NPTMALE	AM1	NMA	1-7/16"	1/2"
15-AM1NMB	15000	1/16" T.S. to 1/4"NPTMALE	AM1	NMB	1-9/16"	5/8"
15-AM2NMA	15000	1/8" T.S. to 1/8"NPTMALE	AM2	NMA	1-5/8"	1/2"
15-AM2NMB	15000	1/8" T.S. to 1/4"NPTMALE	AM2	NMB	1-3/4"	5/8"
15-AM4NMB	15000	1/4" T.S. to 1/4"NPTMALE	AM4	NMB	2"	3/4"

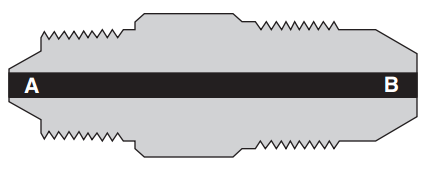

卡套公接头转高压公接头 Male Taper Seal to Male High Pressure
型号	压力等级	连接	A	B	长度	六角尺寸
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
15-AM2HM2	15000	1/8"T.S. to 1/8" H.P.	AM2	HM4	1-9/16"	5/8"
15-AM2HM4	15000	1/8"T.S. to 1/4" H.P.	AM2	HM4	1-5/8"	3/4"
10-AM4HM4	10000	1/4"T.S. to 1/4" H.P.	AM4	HM4	2"	3/4"

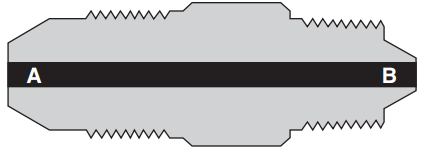

中压公接头转高压公接头 Male Medium Pressure to Male High Pressure
型号	压力等级	连接	A	B	长度	六角尺寸
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
20-LM4HM2	20000	1/4" M.P. to 1/8" H.P.	LM4	HM2	1-7/8"	5/8"
20-LM4HM9	20000	1/4" M.P. to 9/16" H.P.	LM4	HM9	2-3/8"	1-1/8"
20-LM9HM4	20000	9/16" M.P. to 1/4" H.P.	LM9	HM4	2-1/4"	3/4"
20-LM9HM9	20000	9/16" M.P. to 9/16" H.P.	LM9	HM9	2-5/8"	5/8"
20-LM6HM4	20000	3/8" M.P. to 1/4" H.P.	LM6	HM4	2-1/8"	3/4"
20-LM6HM9	20000	3/8" M.P. to 9/16" H.P.	LM6	HM9	2-1/2"	3/4"

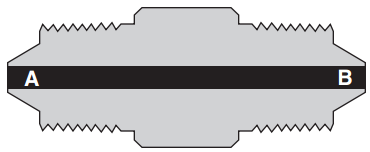

中压公接头转管公接头（NPT） Male Medium Pressure to Male Pipe (NPT)
型号	压力等级	连接	A	B	长度	六角尺寸
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
20-LM4NMB	15000	1/4" M.P. to 1/4" NPT MALE	LM4	NMB	2"	5/8"
20-LM4NMD	15000	1/4" M.P. to 1/2" NPT MALE	LM4	NMD	2-1/8"	7/8"
20-LM6NMB	15000	3/8" M.P. to 1/4" NPT MALE	LM6	NMB	2-1/16"	3/4"
20-LM6NMC	15000	3/8" M.P. to 3/8" NPT MALE	LM6	NMC	2-1/16"	3/4"
20-LM6NMD	15000	3/8" M.P. to 1/2" NPT MALE	LM6	NMD	2-3/16"	7/8"
20-LM9NMA	15000	9/16" M.P. to 1/8" NPT MALE	LM9	NMA	2-1/8"	7/8"
20-LM9NMB	15000	9/16" M.P. to 1/4" NPT MALE	LM9	NMB	2-1/4"	7/8"
20-LM9NMC	15000	9/16" M.P. to 3/8" NPT MALE	LM9	NMC	2-1/4"	7/8"
20-LM9NMD	15000	9/16" M.P. to 1/2" NPT MALE	LM9	NMD	2-3/8"	7/8"
10-LM9NMF	10000	9/16" M.P. to 3/4" NPT MALE	LM9	NMF	2-5/8"	1-1/8"
10-LM9NMH	10000	9/16" M.P. to 1" NPT MALE	LM9	NMH	2-5/8"	1-3/8"
20-LM12NMA	15000	3/4" M.P. to 1/8" NPT MALE	LM12	NMA	2-3/8"	1-1/8"
20-LM12NMB	15000	3/4" M.P. to 1/4" NPT MALE	LM12	NMB	2-1/2"	1-1/8"
20-LM12NMC	15000	3/4" M.P. to 3/8" NPT MALE	LM12	NMC	2-1/2"	1-1/8"
20-LM12NMD	15000	3/4" M.P. to 1/2" NPT MALE	LM12	NMD	2-5/8"	1-1/8"
10-LM12NMF	10000	3/4" M.P. to 3/4" NPT MALE	LM12	NMF	2-3/4"	1-1/8"
10-LM12NMH	10000	3/4" M.P. to 1" NPT MALE	LM12	NMH	3"	1-3/8"
20-LM16NMA	15000	1" M.P. to 1/8" NPT MALE	LM16	NMA	3-5/8"	1"
20-LM16NMB	15000	1" M.P. to 1/4" NPT MALE	LM16	NMB	3-3/4"	1"
20-LM16NMC	15000	1" M.P. to 3/8" NPT MALE	LM16	NMC	3-3/4"	1"
20-LM16NMD	15000	1" M.P. to 1/2" NPT MALE	LM16	NMD	3-7/8"	1"
10-LM16NMF	10000	1" M.P. to 3/4" NPT MALE	LM16	NMF	3-7/8"	1-1/8"
10-LM16NMH	10000	1" M.P. to 1" NPT MALE	LM16	NMH	4"	1-3/8"

中压公接头转中压公接头 Male Medium Pressure to Male Medium Pressure
型号	压力等级	连接	A	B	长度	六角尺寸
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
20-LM4LM4	20000	1/4" M.P. to 1/4" M.P.	LM4	LM4	2"	5/8"
20-LM4LM6	20000	1/4" M.P. to 3/8" M.P.	LM4	LM4	2-1/8"	3/4"
20-LM6LM6	20000	3/8" M.P. to 3/8" M.P.	LM6	LM6	2-1/4"	3/4"
20-LM6LM9	20000	3/8" M.P. to 9/16" M.P.	LM6	LM6	2-1/2"	7/8"
20-LM9LM9	20000	9/16" M.P. to 9/16" M.P.	LM9	LM9	2-5/8"	7/8"
20-LM4LM12	20000	1/4" M.P. to 3/4" M.P.	LM4	LM12	2-1/2"	1-1/8"
20-LM6LM12	20000	3/8" M.P. to 3/4" M.P.	LM6	LM12	2-5/8"	1-1/8"
20-LM9LM12	20000	9/16" M.P. to 3/4" M.P.	LM9	LM12	2-7/8"	1-1/8"
20-LM4LM16	20000	1/4" M.P. to 1 " M.P.	LM4	LM16	3-5/8"	1"
20-LM6LM16	20000	3/8" M.P. to 1 " M.P.	LM6	LM16	3-3/4"	1"
20-LM9LM16	20000	9/16" M.P. to 1 " M.P.	LM9	LM16	4"	1"
20-LM12LM12	20000	3/4" M.P. to 3/4" M.P.	LM12	LM12	3"	1-1/8"
20-LM12LM16	20000	3/4" M.P. to 1 " M.P.	LM12	LM12	4-1/4"	1-1/8"

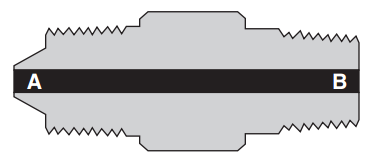

高压公接头转管公接头（NPT） Male High Pressure to Male Pipe (NPT)
型号	压力等级	连接	A	B	长度	六角尺寸
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
30-HM2NMA	15000	1/8" H.P. to 1/8" NPT MALE	HM2	NMA	1-5/8"	1/2"
30-HM2NMB	15000	1/8" H.P. to 1/4" NPT MALE	HM2	NMB	1-3/4"	5/8"
30-HM4NMA	15000	1/4" H.P. to 1/8" NPT MALE	HM4	NMA	1-7/8"	5/8"
30-HM4NMB	15000	1/4" H.P. to 1/4" NPT MALE	HM4	NMB	2"	5/8"
30-HM4NMC	15000	1/4" H.P. to 3/8" NPT MALE	HM4	NMC	2"	3/4"
30-HM4NMD	15000	1/4" H.P. to 1/2" NPT MALE	HM4	NMD	2-1/8"	7/8"
10-HM4NMF	10000	1/4" H.P. to 3/4" NPT MALE	HM4	NMF	2-1/4"	1-1/8"
30-HM6NMB	15000	3/8" H.P. to 1/4" NPT MALE	HM6	NMB	2-1/8"	7/8"
30-HM6NMC	15000	3/8" H.P. to 3/8" NPT MALE	HM6	NMC	2-1/8"	7/8"
30-HM9NMB	15000	9/16" H.P. to 1/4" NPT MALE	HM9	NMB	2-3/8"	1-1/8"
30-HM9NMC	15000	9/16" H.P. to 3/8" NPT MALE	HM9	NMC	2-3/8"	1-1/8"
30-HM9NMD	15000	9/16" H.P. to 1/2" NPT MALE	HM9	NMD	2-1/2"	1-1/8"
10-HM9NMF	10000	9/16" H.P. to 3/4" NPT MALE	HM9	NMF	2-5/8"	1-1/8"
10-HM9NMH	10000	9/16" H.P. to 1" NPT MALE	HM9	NMH	2-3/4"	1-3/8"

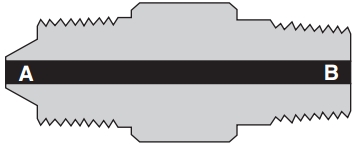

管公接头转管公接头 Male Pipe to Male Pipe
型号	压力等级	连接	A	B	长度	六角尺寸
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
15-NMBNMB	15000	1/4" NPT MALE to 1/4" NPT MALE	NMB	NMB	2-3/8"	1-1/8"
15-NMBNMC	15000	1/4" NPT MALE to 3/8" NPT MALE	NMB	NMB	2-1/2"	1-1/8"
15-NMCNMC	15000	3/8" NPT MALE to 3/8" NPT MALE	NMC	NMC	2-5/8"	1-1/8"
15-NMDNMD	15000	1/2" NPT MALE to 1/2" NPT MALE	NMD	NMD	2-3/4"	1-3/8"

高压公接头转中压公接头 Male High Pressure to Male Medium Pressure
型号	压力等级	连接	A	B	长度	六角尺寸
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
20-HM4LM12	20000	1/4" H.P. to 3/4" M.P.	HM4	LM12	2-5/8"	1-1/8"
20-HM6LM12	20000	3/8" H.P. to 3/4" M.P.	HM6	LM12	2-3/4"	1-1/8"
20-HM9LM12	20000	9/16" H.P. to 3/4" M.P.	HM9	LM12	3"	1-1/8"
20-HM4LM16	20000	1/4" H.P. to 1 " M.P.	HM4	LM16	3-5/8"	1"
20-HM6LM16	20000	3/8" H.P. to 1 " M.P.	HM6	LM16	4"	1"
20-HM9LM16	20000	9/16" H.P. to 1 " M.P.	HM9	LM16	4"	1-1/8"

高压公接头转高压公接头 Male High Pressure to Male High Pressure
型号	压力等级	连接	A	B	长度	六角尺寸
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
Catalog Number	PressureRating （psi）	Connections			Length （inch）	Hex Size （inch）
60-HM2HM2	60000	1/8" H.P. to 1/8" H.P.	HM2	HM2	1-1/2"	1/2"
60-HM2HM4	60000	1/8" H.P. to 1/4" H.P.	HM2	HM4	1-5/8"	5/8"
60-HM4HM4	60000	1/4" H.P. to 1/4" H.P.	HM4	HM4	1-11/16"	5/8"
60-HM4HM6	60000	1/4" H.P. to 3/8" H.P.	HM4	HM6	2-1/16"	3/4"
60-HM4HM9	60000	1/4" H.P. to 9/16" H.P.	HM4	HM9	2-1/4"	1-1/8"
60-HM6HM6	60000	3/8" H.P. to 3/8" H.P.	HM6	HM6	2-1/4"	3/4"
60-HM6HM9	60000	3/8" H.P. to 9/16" H.P.	HM6	HM9	2-1/2"	1-1/8"
60-HM9HM9	60000	9/16" H.P. to 9/16" H.P.	HM9	HM9	2-5/8"	1-1/8"
30-HM4HM16	30000	1/4" H.P. to 1 " M.P.	HM4	HM16	3-5/8"	1"
30-HM6HM16	30000	3/8" H.P. to 1 " M.P.	HM6	HM16	4"	1"
30-HM9HM16	30000	9/16" H.P. to 1 " M.P.	HM9	HM16	4"	1-1/8"
